| Specification |
Manual Remote |

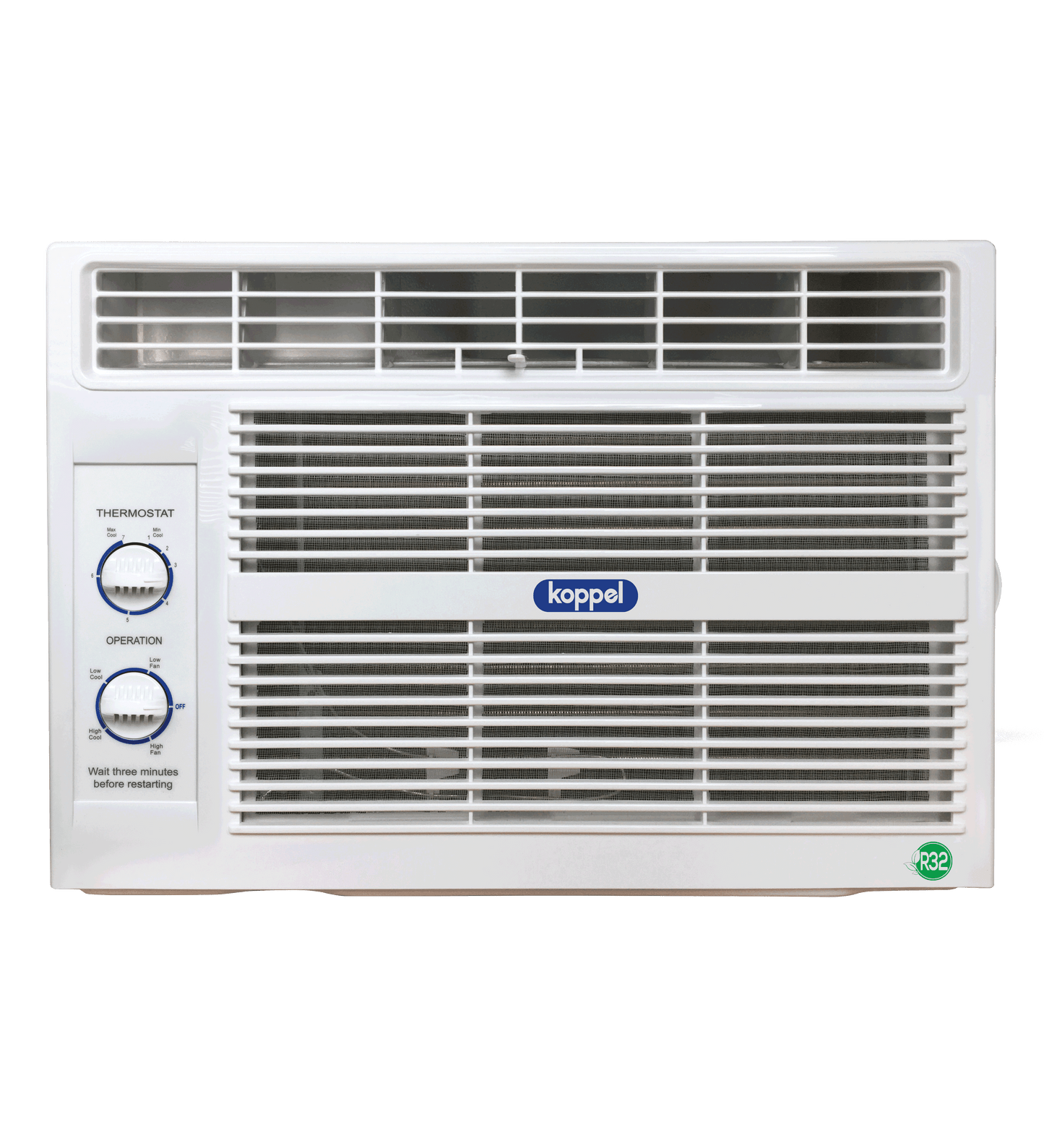

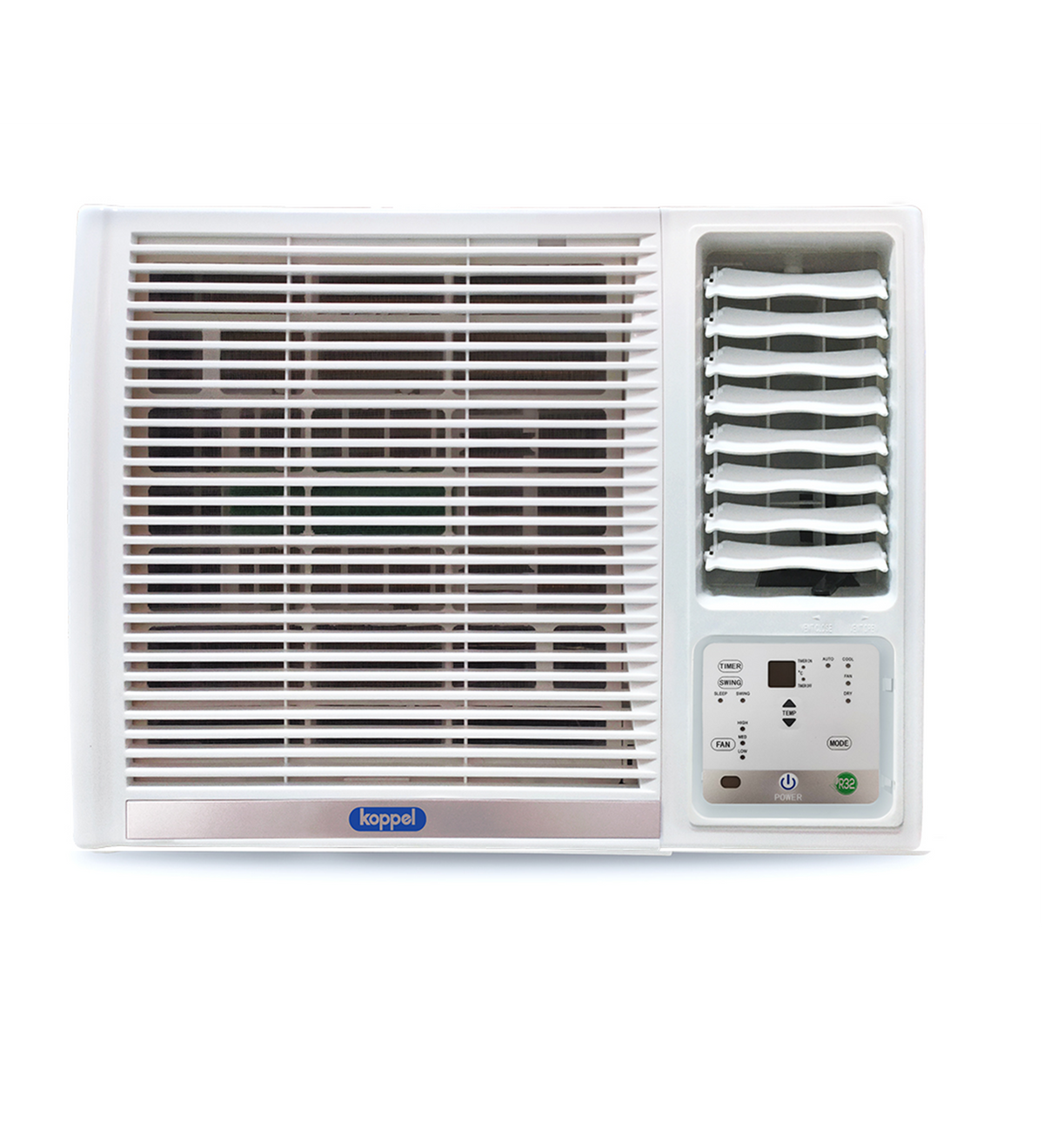

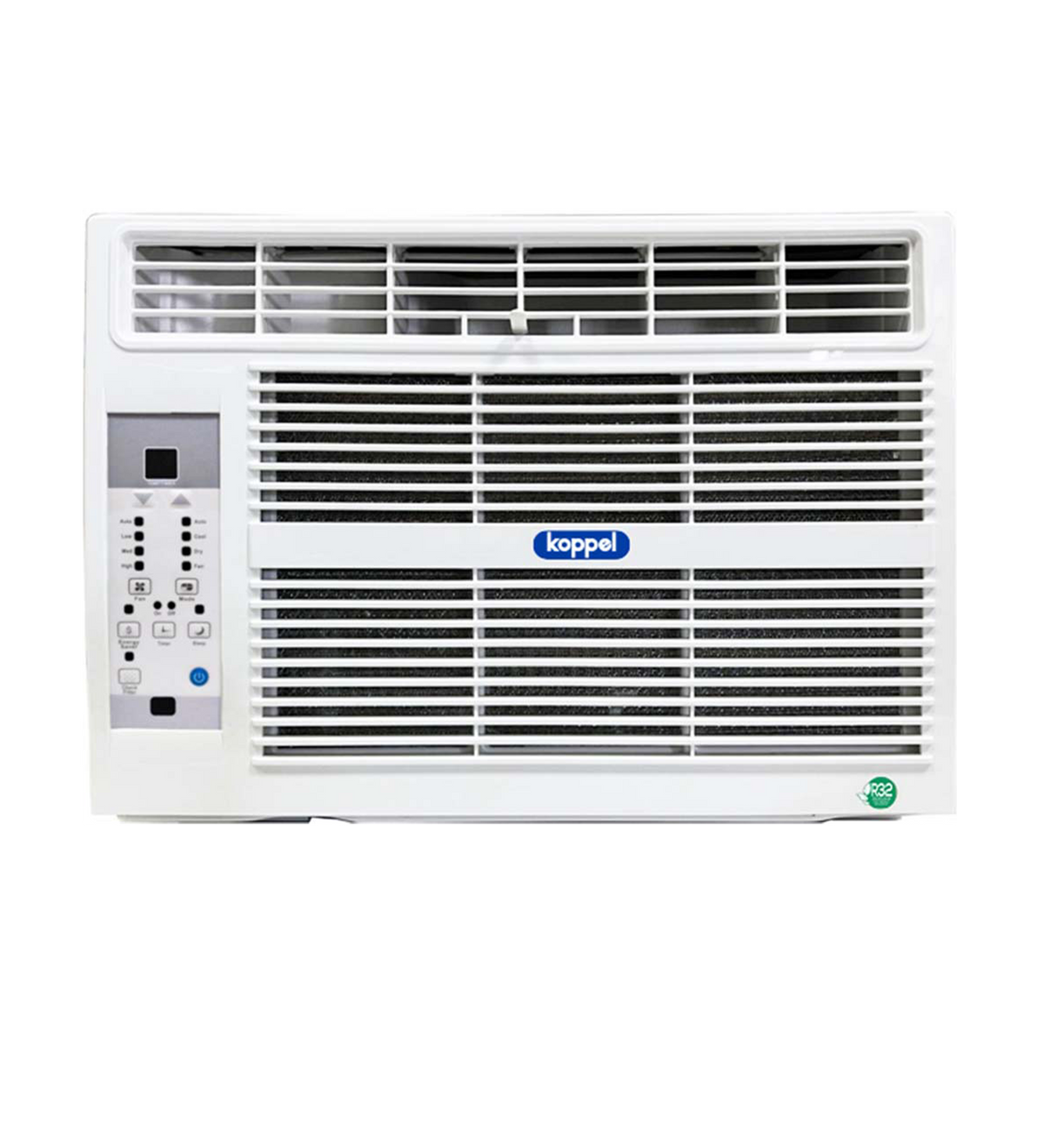

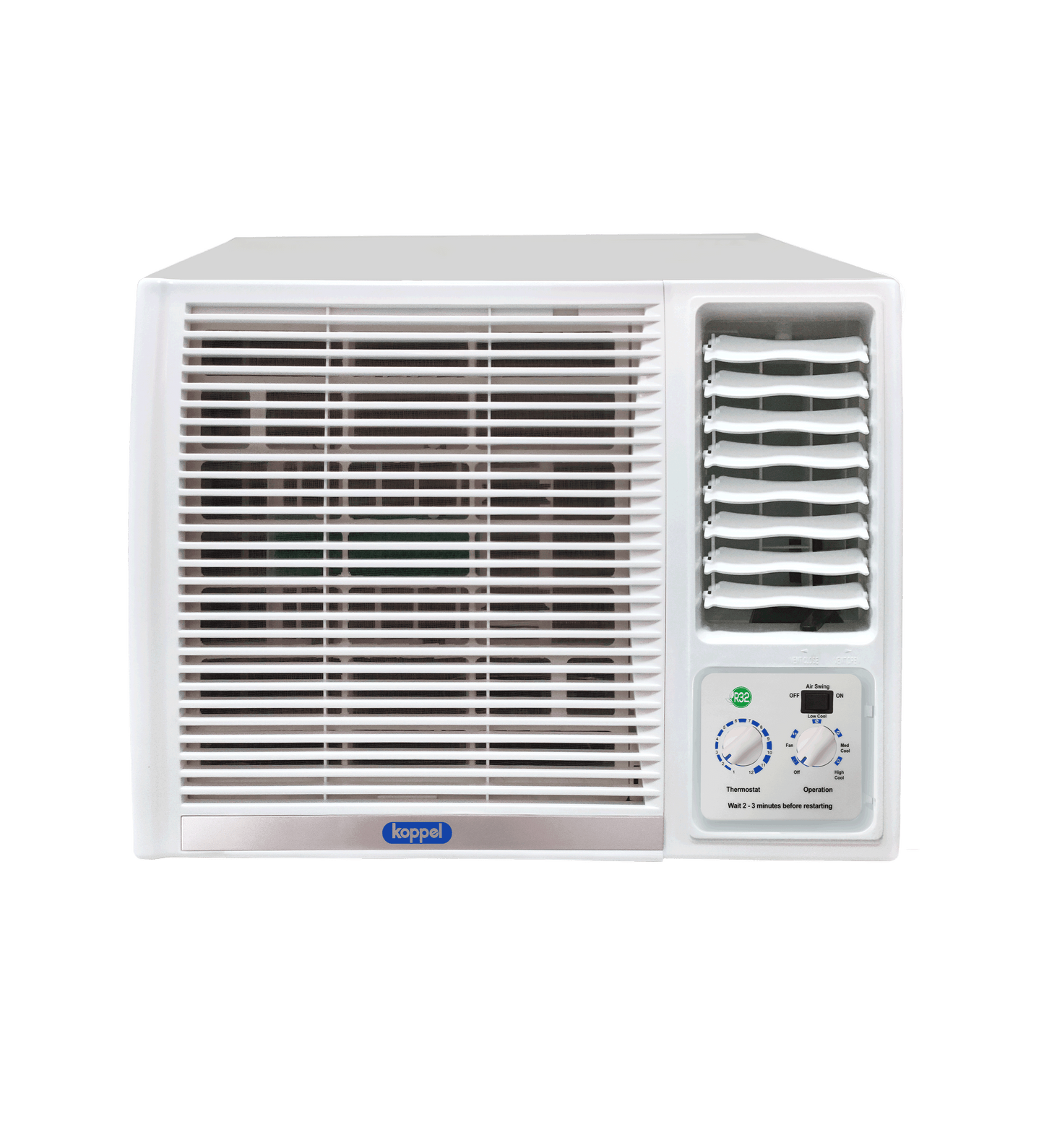

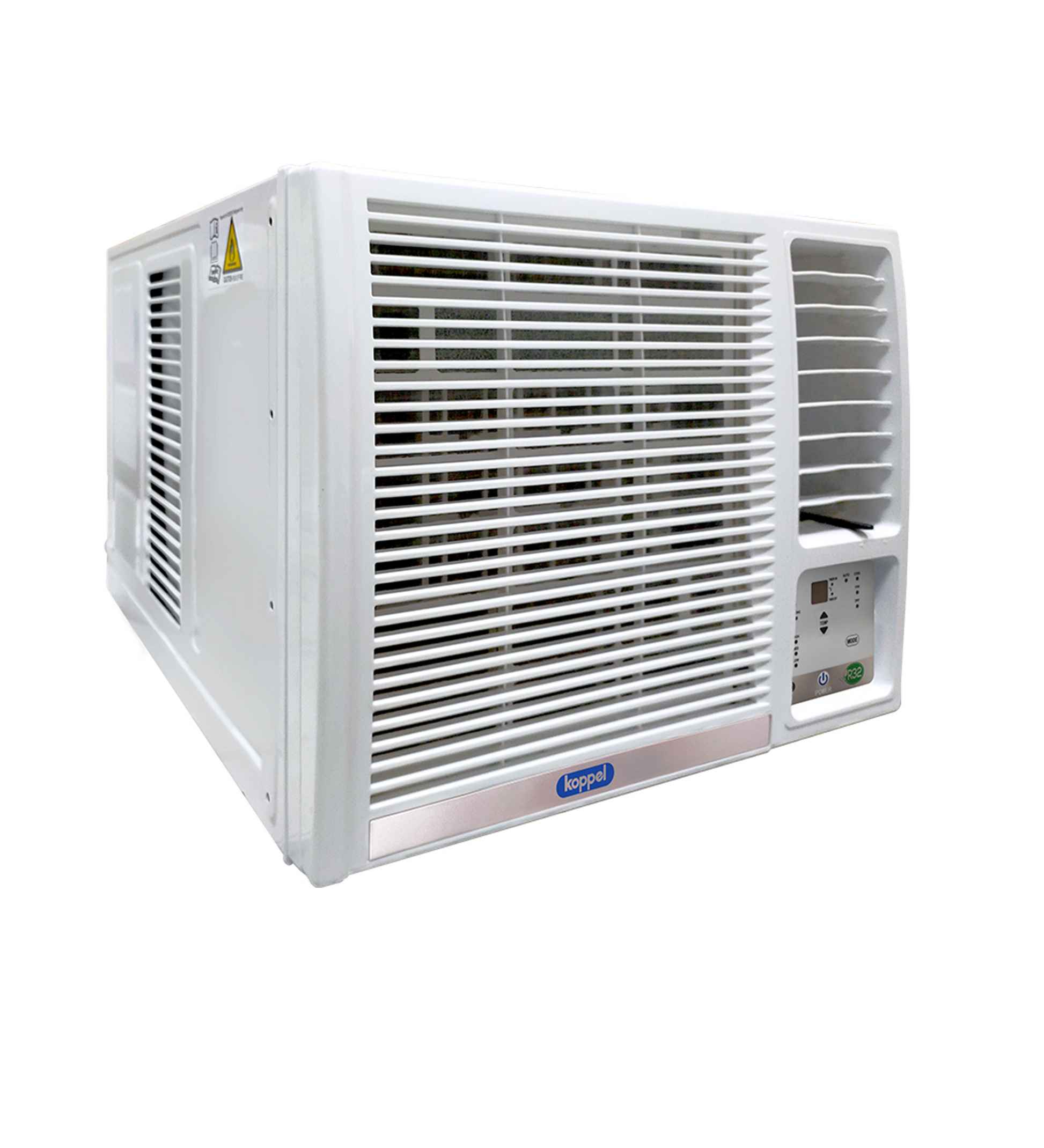

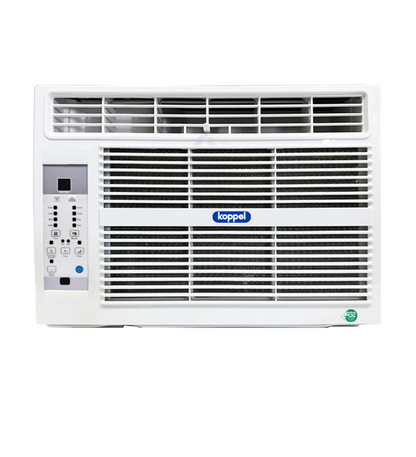

KWR-06M4A2 KWR-06R4A2 |
KWR-07M4A2 |
KWR-09M4A2 KWR-09R4A2 |
KWR-12M4A2 KWR-12R4A2 |
KWR-18R4A2 |
|---|---|---|---|---|---|---|
| Cooling Capacity | HP | 0.6 | 0.75 | 1.0 | 1.5 | 2.0 |
| BTU/Hr | 6,135 | 7,350 | 9,000 | 12,300 | 19,200 | |
| kJ/Hr | 6,472 | 7,754 | 9,495 | 12,977 | 20,256 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230 /60 |
230 /60 |
230 /60 |
| Rated Power | W | 575 | 690 | 840 | 1,160 | 1,740 |
| Rated Current | A | 2.5 | 3.1 | 3.8 | 5.2 | 7.9 |
| EER | BTU/W-Hr | 10.67 | 10.7 | 10.7 | 10.6 | 11.0 |
| kJ/W-Hr | 11.26 | 11.2 | 11.3 | 11.2 | 11.6 | |
| CSPF | 3.32 | 3.32 | 3.33 | 3.3 | 3.43 | |

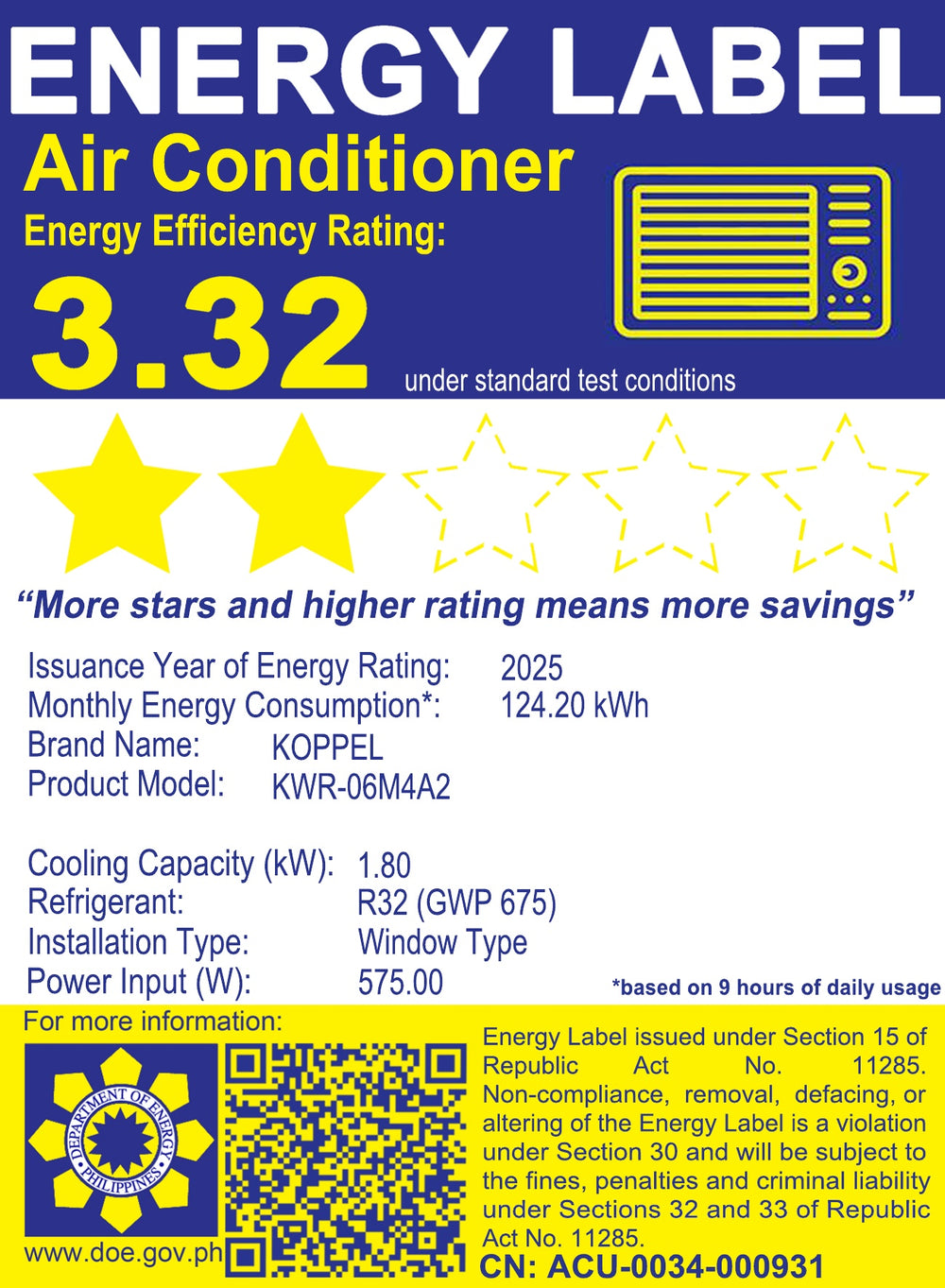

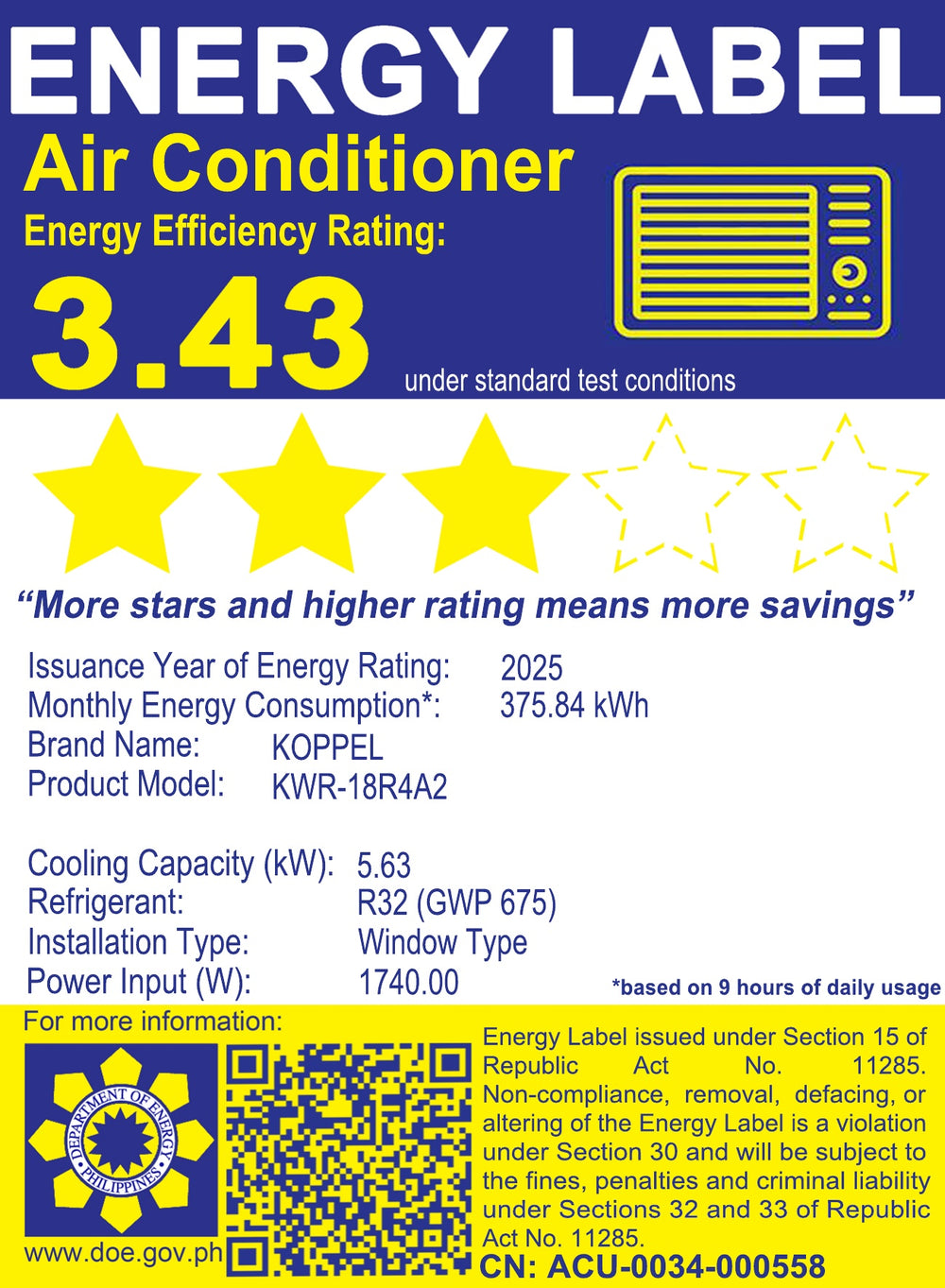

| Star Rating | ★★ | ★★ | ★★ | ★★ | ★★★ | |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 7-11 | 9-14 | 12-18 | 16-23 | 23-34 |
| Airflow Volume Hi | CMH | 233 | 366 | 340 | 434 | 780 |
| Noise Level Low | dB(A) | 53 | 45 | 46 | 54 | 52 |
| Unit | ||||||
| Unit Dimension (W×D×H) | mm | 406×335×306 | 450×535×346 | 450×535×346 | 450×585×346 | 660×680×428 |
| Packaging Dimension (W×D×H) | mm | 455×390×380 | 495×580×435 | 495×580×435 | 505×640×435 | 746×815×515 |
| Unit Weight (Net/Gross) | kg | 16.9/18.2 | 24.6/27 | 25.5/28.2 | 31.8/34.4 | 53.1/57.8 |
