| Specification |
Indoor Unit Outdoor Unit |
KV09WM-ARF31D KV09OD-ARF31D |
KV12WM-ARF31D KV12OD-ARF31D |
KV18WM-ARF31D KV18OD-ARF31D |
KV24WM-ARF31D KV24OD-ARF31D |
KV27WM-ARF31D KV27OD-ARF31D |
|---|---|---|---|---|---|---|
| Cooling Capacity | HP | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
| BTU/Hr | 9,000 | 12,000 | 18,000 | 22,000 | 26,000 | |
| kJ/Hr | 9,495 | 12,660 | 18,990 | 23,210 | 27,430 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230 /60 |
230 /60 |
230 /60 |
| Rated Power | W | 810 | 1,095 | 1,890 | 2,170 | 2,475 |
| Rated Current | A | 5.20 | 7.15 | 8.04 | 9.50 | 11.50 |
| EER | BTU/W-Hr | 11.11 | 10.96 | 9.52 | 10.14 | 10.51 |
| kJ/W-Hr | 11.72 | 11.56 | 10.05 | 10.70 | 11.08 | |
| CSPF | 5.15 | 5.18 | 5.00 | 4.47 | 4.82 | |
| Star Rating | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 12-18 | 16-23 | 24-35 | 30-43 | 33-48 |
| Airflow Volume Hi/Med/Low | CMH | 486/390/280 | 580/450/310 | 800/660/500 | 960/780/600 | 920/730/550 |
| Noise Level Hi/Med/Low | dB(A) | 39/33/27 | 40.5/34/26.5 | 44.5/38.5/31 | 47/41/37 | 46.5/40.5/33.5 |

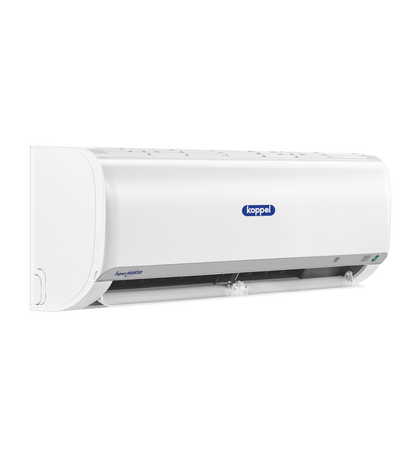

| Indoor | ||||||
| Unit Dimension (W×D×H) | mm | 715×194×285 | 805×194×285 | 957×213×302 | 1,040×220×327 | 1,040×220×327 |
| Packaging Dimension (W×D×H) | mm | 780×270×365 | 870×270×365 | 1,035×295×385 | 1,120×405×315 | 1,120×405×315 |
| Unit Weight (Net/Gross) | kg | 7.2/9.3 | 7.7/9.8 | 10.4/13.2 | 13.0/16.5 | 13.1/16.4 |

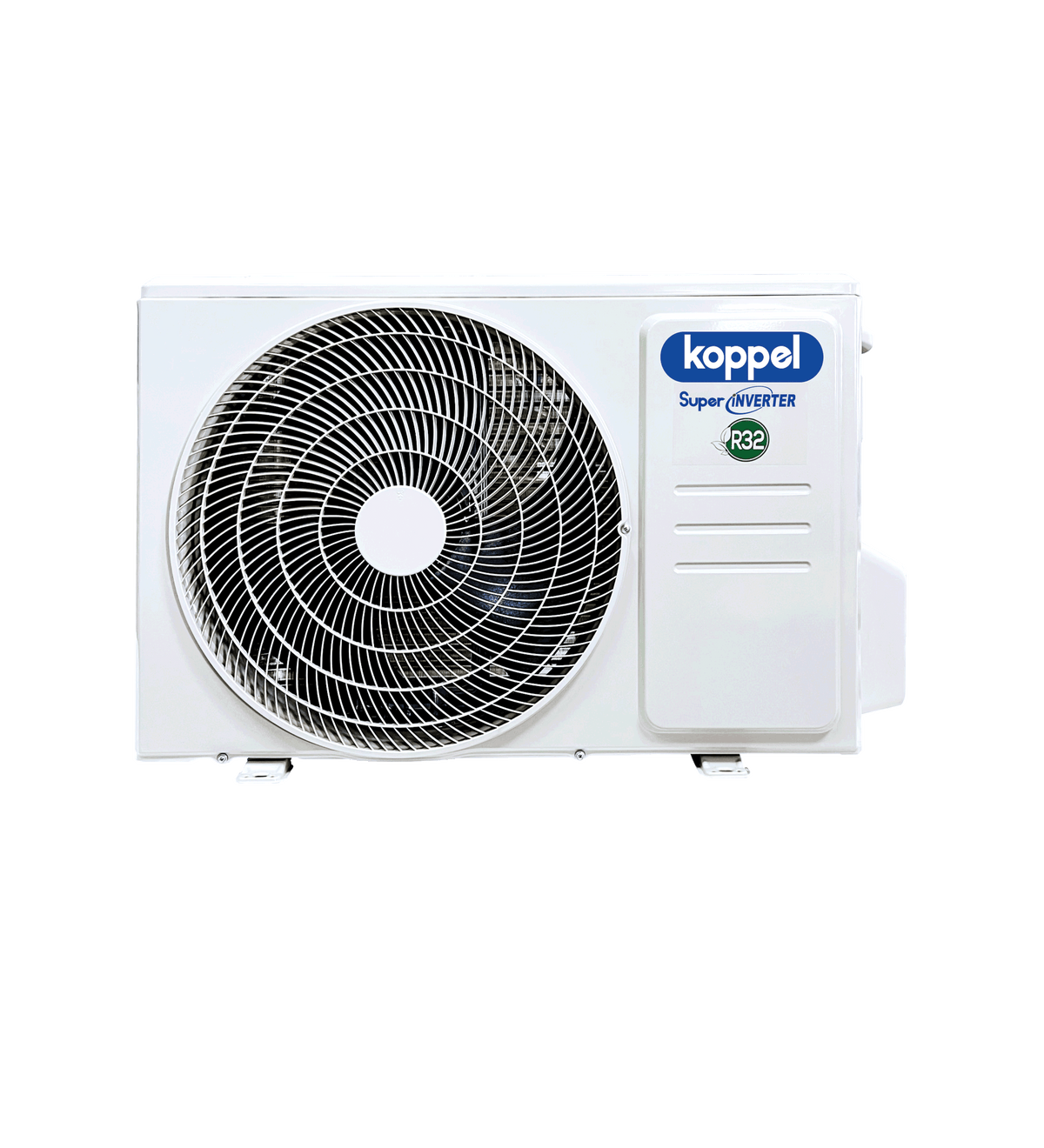

| Outdoor | ||||||
| Unit Dimension (W×D×H) | mm | 720×270×495 | 720×270×495 | 765×303×555 | 805×330×554 | 890×342×673 |
| Packaging Dimension (W×D×H) | mm | 835×300×540 | 835×300×540 | 887×337×610 | 915×370×615 | 995×398×740 |
| Unit Weight (Net/Gross) | kg | 18.8/20.7 | 19.9/21.8 | 24.4/26.7 | 29/31.5 | 39.4/42.4 |
| Piping Connections | ||||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) |
| Gas Pipe Size (Diameter) | mm (in) | Ø9.52 (3/8) | Ø9.52 (3/8) | Ø12.7 (1/2) | Ø12.7 (1/2) | Ø15.9 (5/8) |
| Max. Refrigerant Pipe Length | m | 25 | 25 | 30 | 30 | 50 |
| Max. Difference in Level | m | 10 | 10 | 20 | 20 | 25 |
