| Specification |
Indoor Unit Outdoor Unit |
KV09WM-ARF31A KV09OD-ARF31A |
KV12WM-ARF31A KV12OD-ARF31A |
KV18WM-ARF31A KV18OD-ARF31A |
KV24WM-ARF31A KV24OD-ARF31A |
KV27WM-ARF31A KV27OD-ARF31A |
|---|---|---|---|---|---|---|
| Cooling Capacity | HP | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
| BTU/Hr | 9,800 (1,250 9,800) |
12,900 (3,000 12,900) |
19,550 (4,436 19,550) |
23,300 (6,118 23,300) |
25,950 (10,300 25,950) |
|
| kJ/Hr | 10,339 (1,319 10,339) |
13,610 (3,165 13,610) |
20,645 (4,680 20,645) |
24,582 (6,455 24,582) |
27,377 (10,887 27,377) |
|
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230 /60 |
230 /60 |
230 /60 |
| Rated Power | W | 942 | 1,285 | 1,818 | 2,130 | 2,540 |
| Rated Current | A | 4.19 | 5.68 | 8.18 | 10.09 | 11.05 |
| EER | BTU/W-Hr | 10.41 | 10.03 | 10.75 | 10.95 | 10.20 |
| kJ/W-Hr | 10.98 | 10.58 | 11.34 | 11.56 | 10.76 | |
| CSPF | 5.21 | 5.51 | 5.56 | 5.87 | 5.34 | |
| Star Rating | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 16-32 | 16-32 | 16-32 | 16-32 | 16-32 |
| Applicable Area (Unloaded Space) | SQM | 12-18 | 16-23 | 24-35 | 29-43 | 32-47 |
| Airflow Volume Hi/Med/Low | CMH | 550/400/320 | 560/420/350 | 895/740/650 | 1,300/960/760 | 1,300/960/760 |
| Noise Level Hi/Med/Low | dB(A) | 40/34/31 | 35.5/31/29 | 44.5/37/34.5 | 48.5/40/36.5 | 47/40/36.5 |

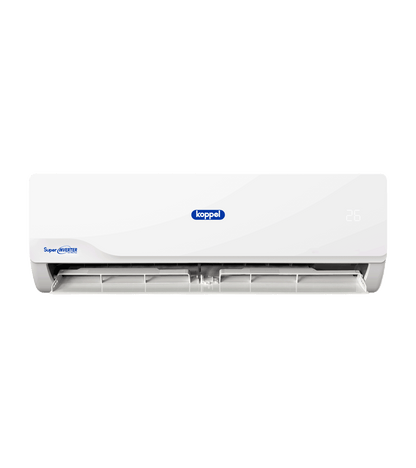

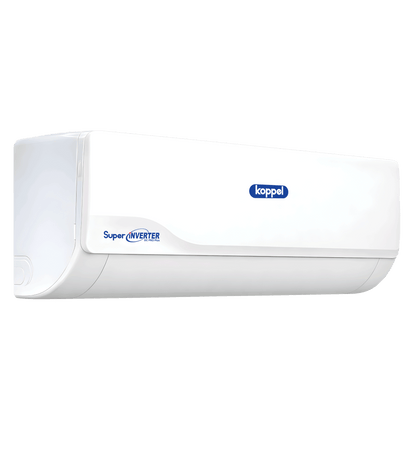

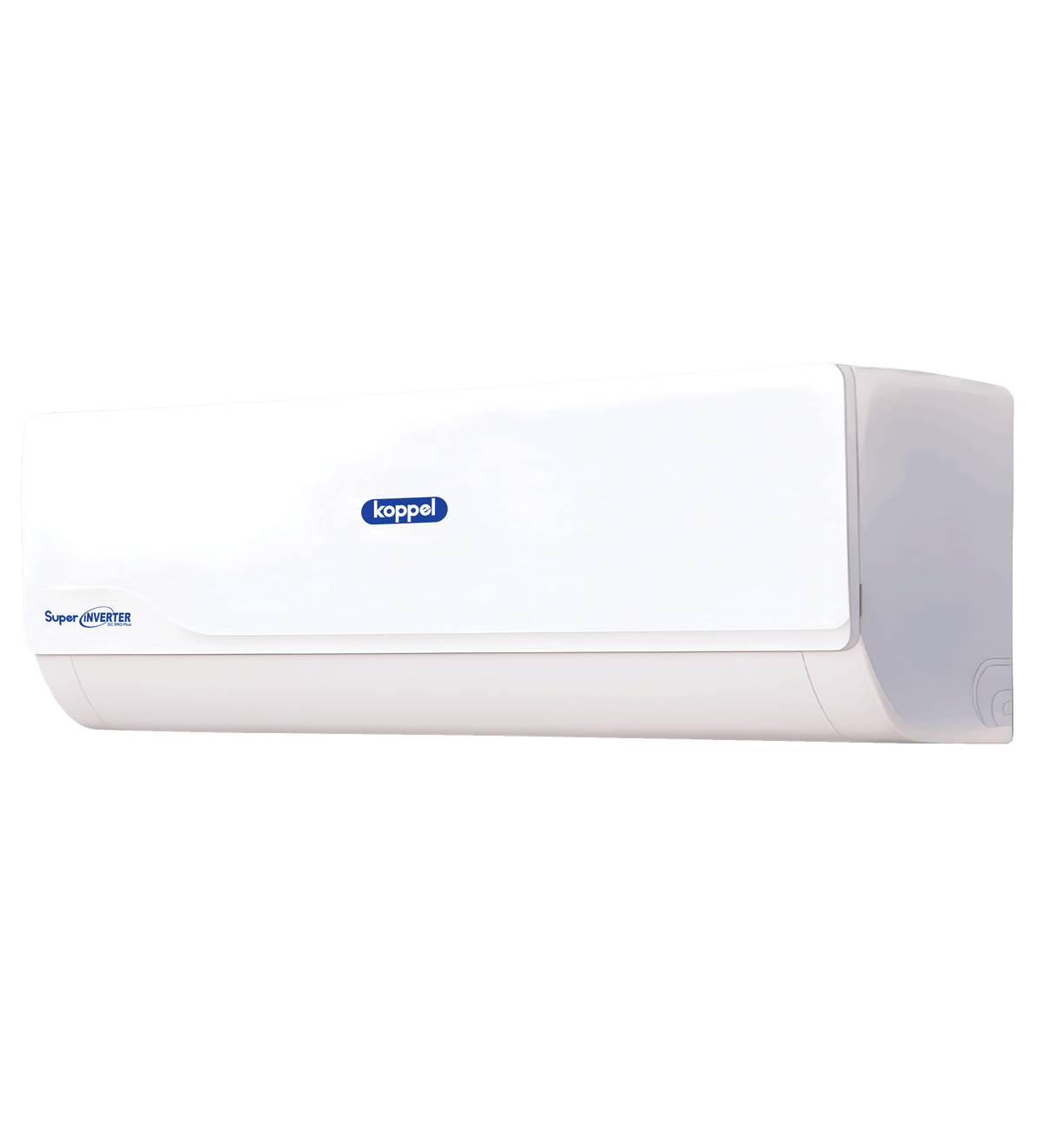

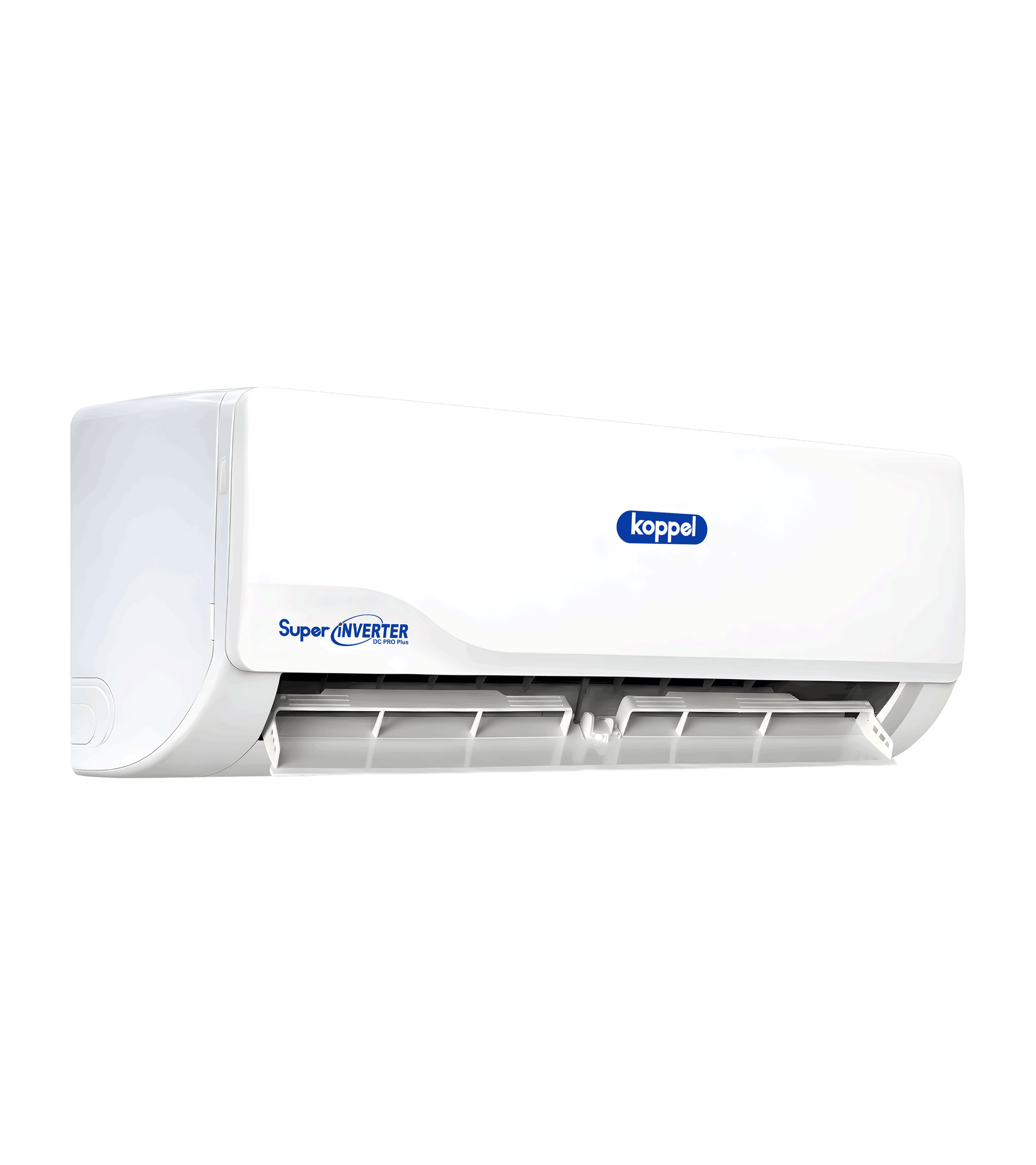

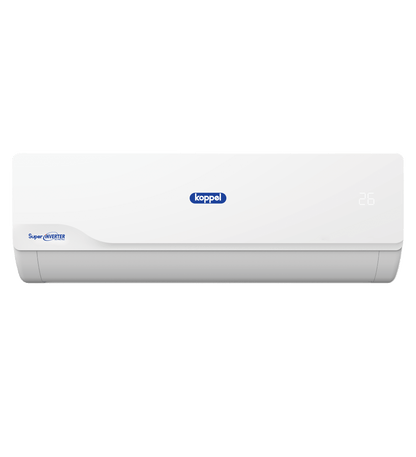

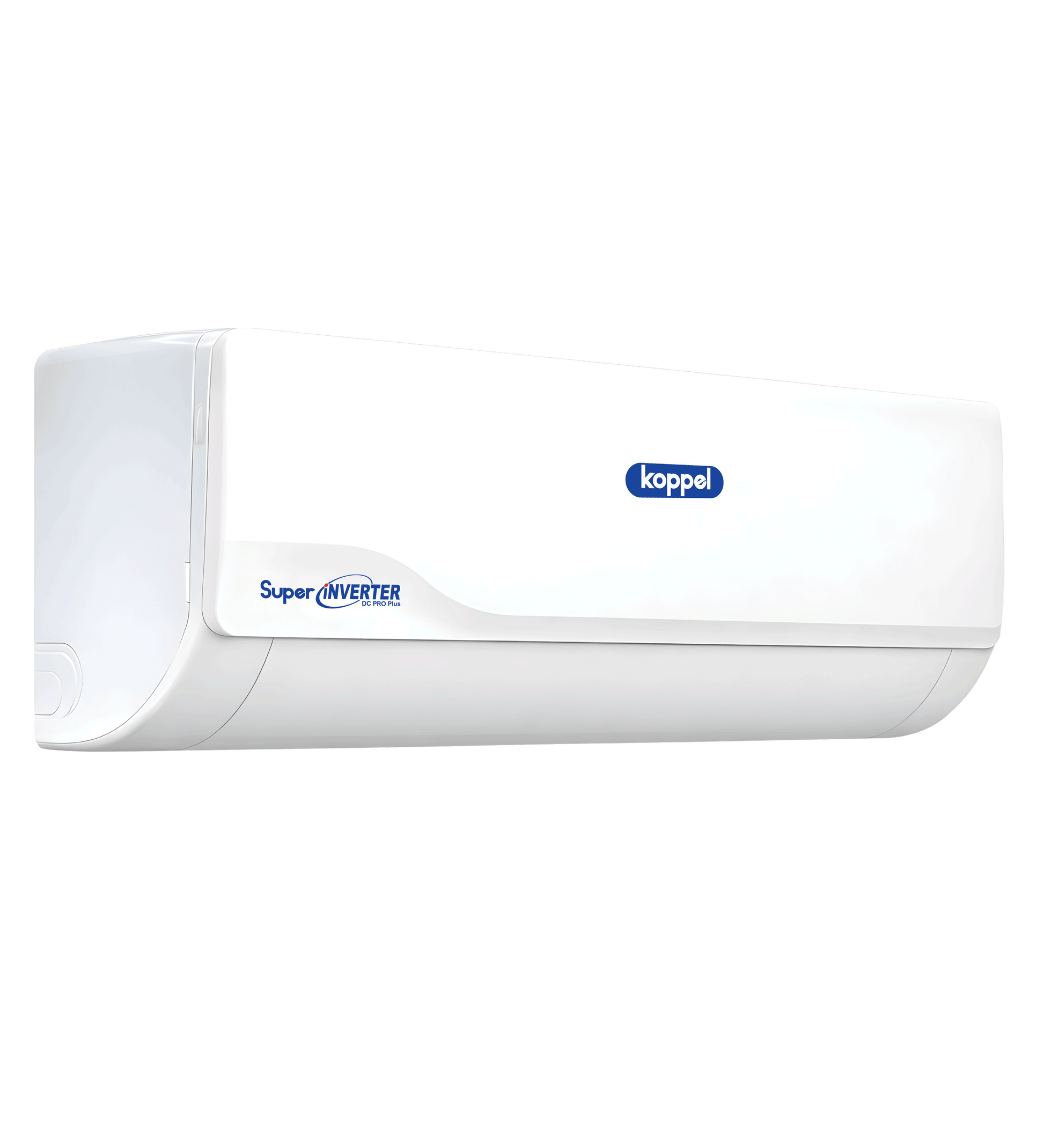

| Indoor | ||||||
| Unit Dimension (W×D×H) | mm | 715×203×286 | 806×202×286 | 965×220×305 | 1,046×228×321 | 1,046×228×321 |
| Packaging Dimension (W×D×H) | mm | 780×270×360 | 807×270×360 | 1,035×295×380 | 1,130×405×310 | 1,130×405×310 |
| Unit Weight (Net/Gross) | kg | 7.1/9.4 | 7.8/10.0 | 10.1/13.3 | 12.1/15.7 | 12.1/15.7 |

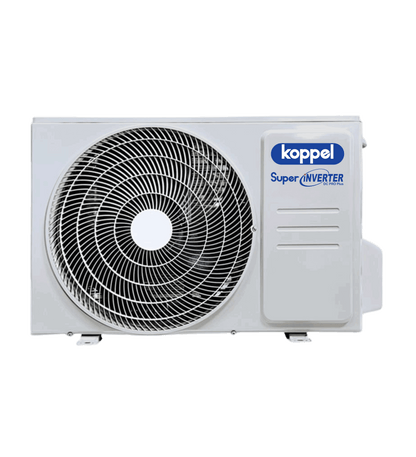

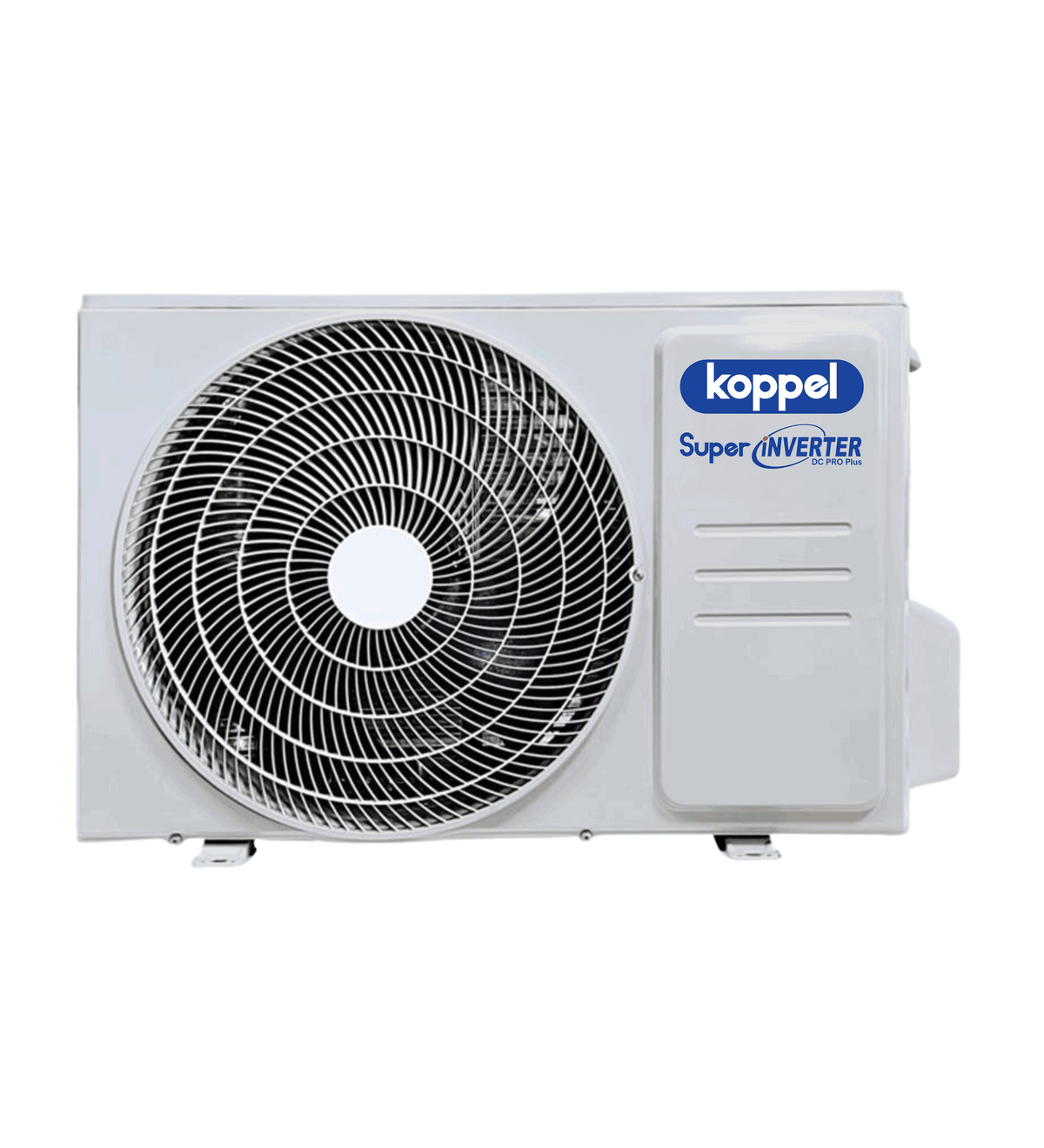

| Outdoor | ||||||
| Unit Dimension (W×D×H) | mm | 730×240×465 | 730×240×465 | 860×290×550 | 880×315×550 | 880×315×550 |
| Packaging Dimension (W×D×H) | mm | 765×270×525 | 765×270×525 | 887×337×610 | 915×370×615 | 915×370×615 |
| Unit Weight (Net/Gross) | kg | 16.7/18.3 | 16.9/18.5 | 24.2/26.5 | 27.4/29.7 | 29.9/32.5 |
| Piping Connections | ||||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) | Ø6.35 (1/4) |
| Gas Pipe Size (Diameter) | mm (in) | Ø9.52 (3/8) | Ø9.52 (3/8) | Ø12.7 (1/2) | Ø12.7 (1/2) | Ø12.7 (1/2) |
| Max. Refrigerant Pipe Length | m | 25 | 25 | 30 | 30 | 50 |
| Max. Difference in Level | m | 10 | 10 | 20 | 25 | 25 |
