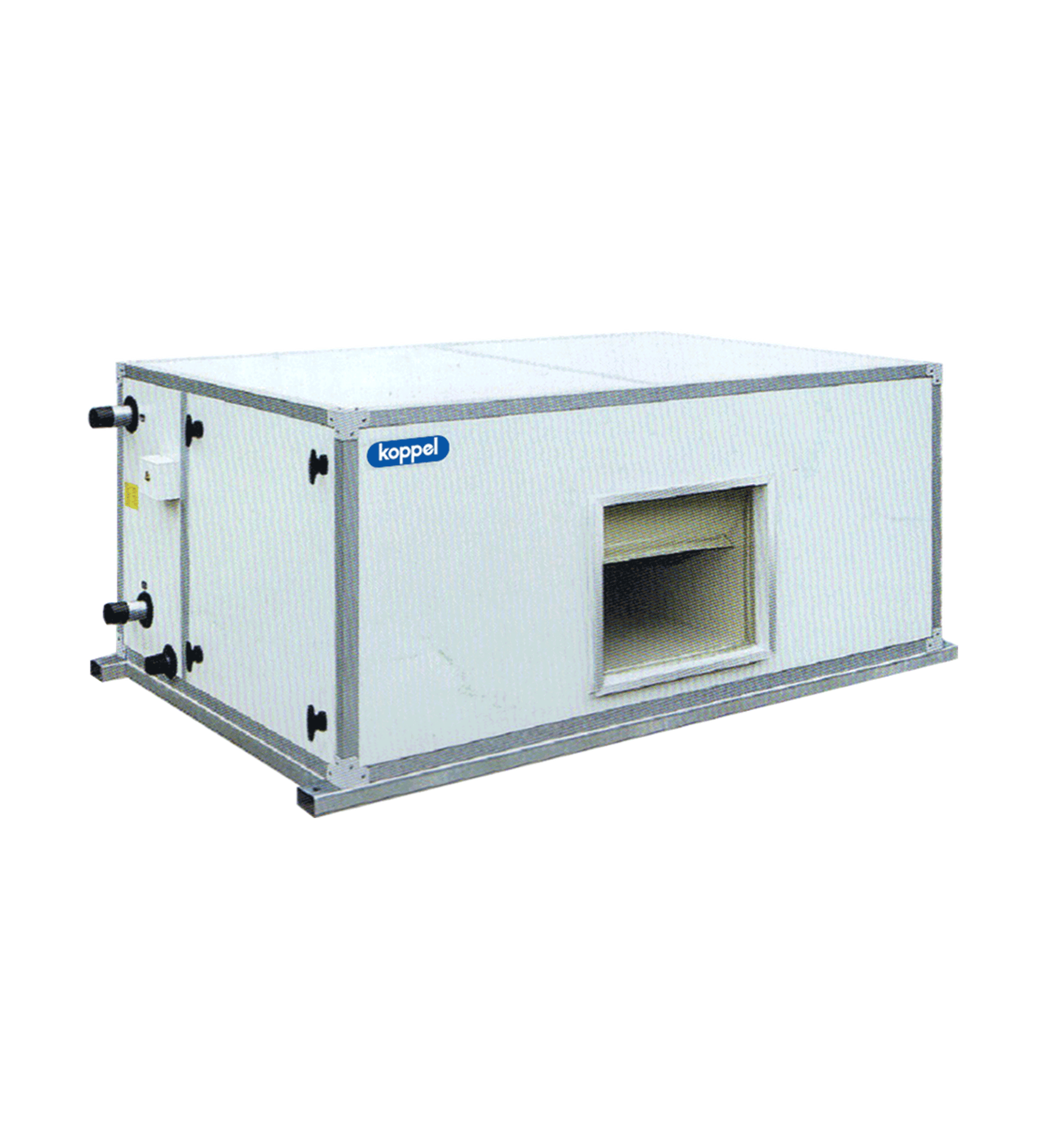

| Specification | Indoor Units | KSDH-60CHW | KSDH-90CHW | KSDH-120CHW | |
|---|---|---|---|---|---|
| Performance | |||||
| Nominal Cooling Capacity | BTU/h | 36,000 | 60,000 | 90,000 | 120,000 |
| KJ/h | 37,980 | 63,300 | 94,950 | 126,600 | |
| Water Flow | L/S | 0.45 | 0.75 | 1.13 | 1.5 |
| Motor HP | HP | 1/3 | 1 | 1.5 | 2 |
| Rated External Static Pressure | Pa | 50 | 75 | 125 | 175 |
| Power Supply | V/Ph/Hz | 230V / 60 |
230V/ 3 / 60 |
230V/ 3 / 60 |
230V/ 3 / 60 |
| Blower Size (Centrifugal DWDI) | 10"x10" SINGLE | 12"x12" SINGLE | 15"x15" SINGLE | 12"x12" DOUBLE | |
| Nominal Air Flow | m3/h (CFM) | 2,040 (1,200) | 3,400 (2,000) | 5,100 (3,000) | 6,800 (4,000) |
| Unit | |||||
| Dimension (WxDxH) | mm | 918 x 1,094.5 x 539 | 1,188 x 850.5 x 641 | 1,368 x 989.5 x 749 | 1,378 x 952 x 764 |
| Weight | kg | 123 | 136 | 141 | 214 |
| Pipe Connection Diameter | mm (inch) | 19.05 (3/4) | 28.575 (1 1/8) | 28.575 (1 1/8) | 28.575 (1 1/8) |
