| Specification |

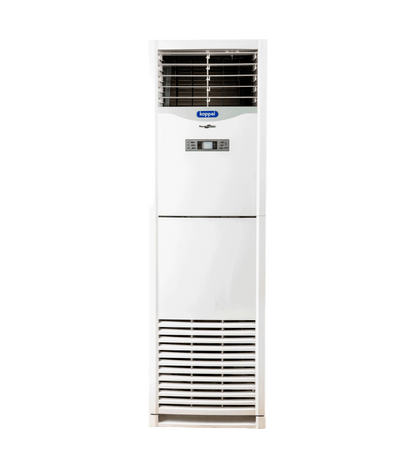

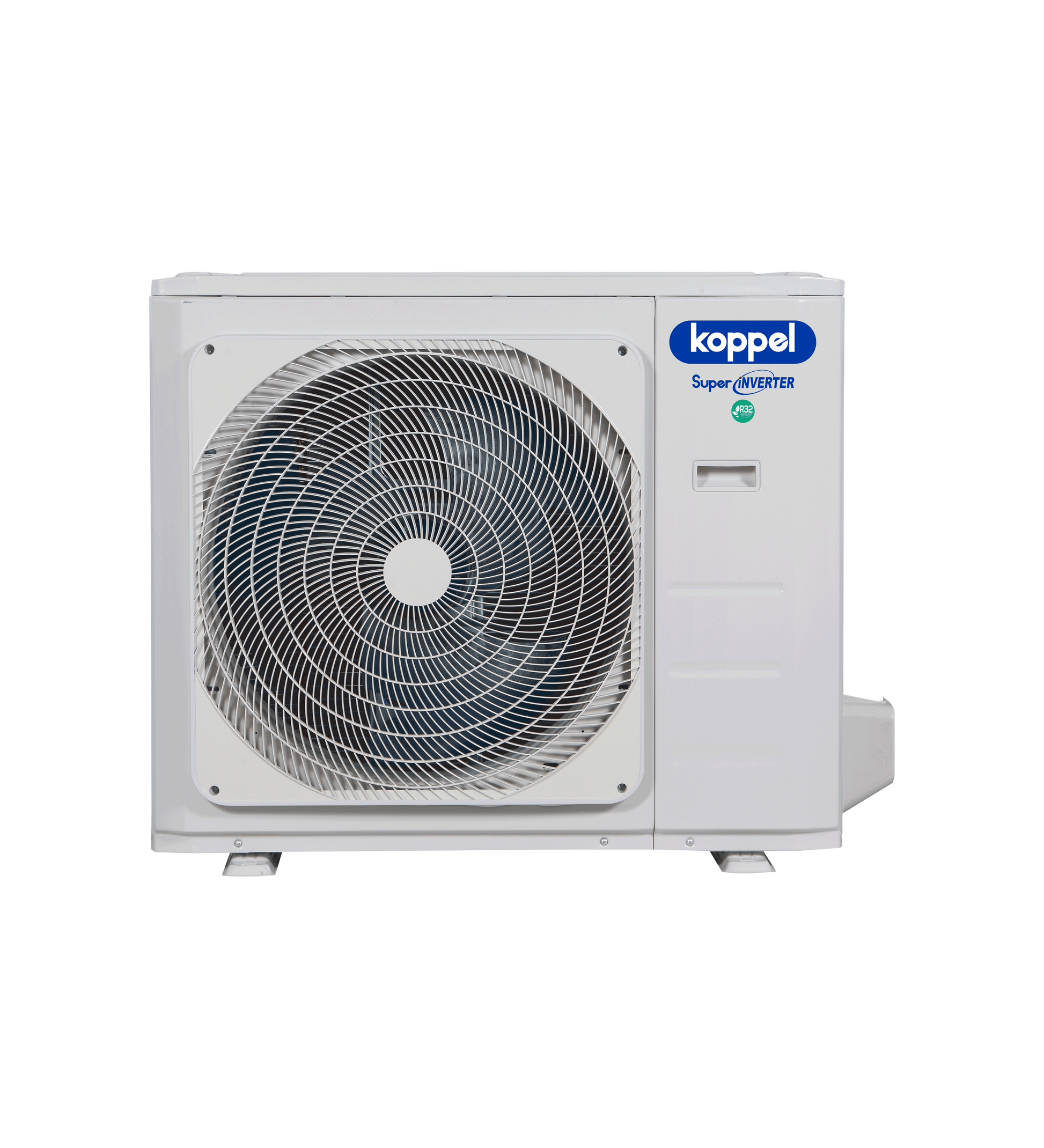

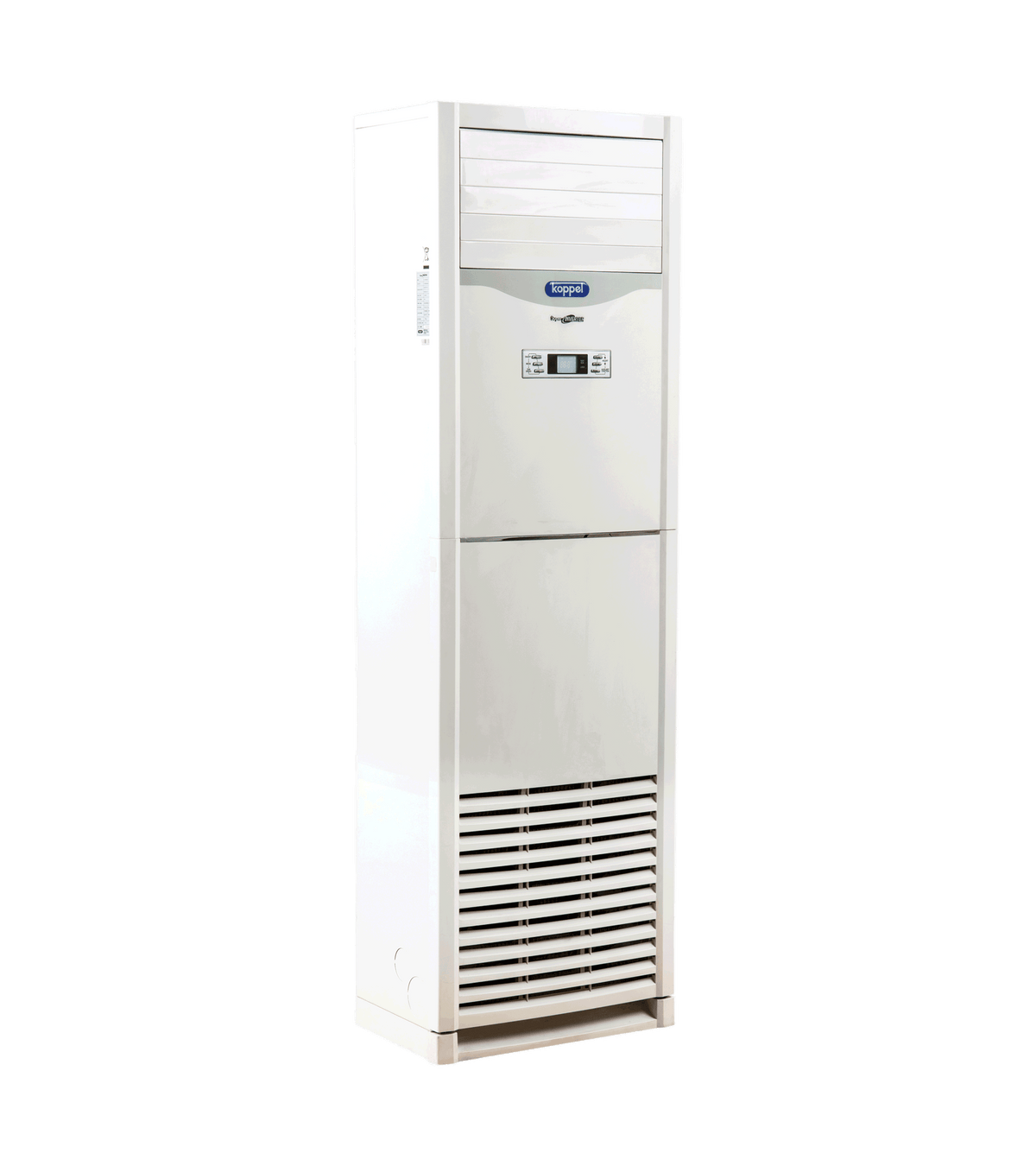

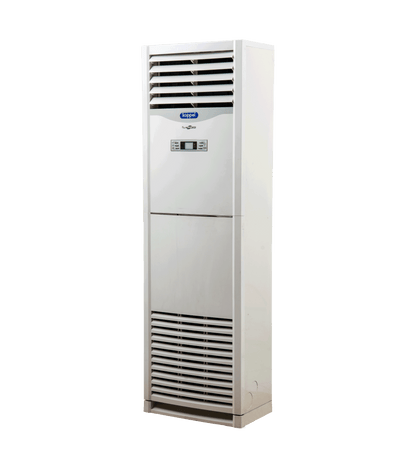

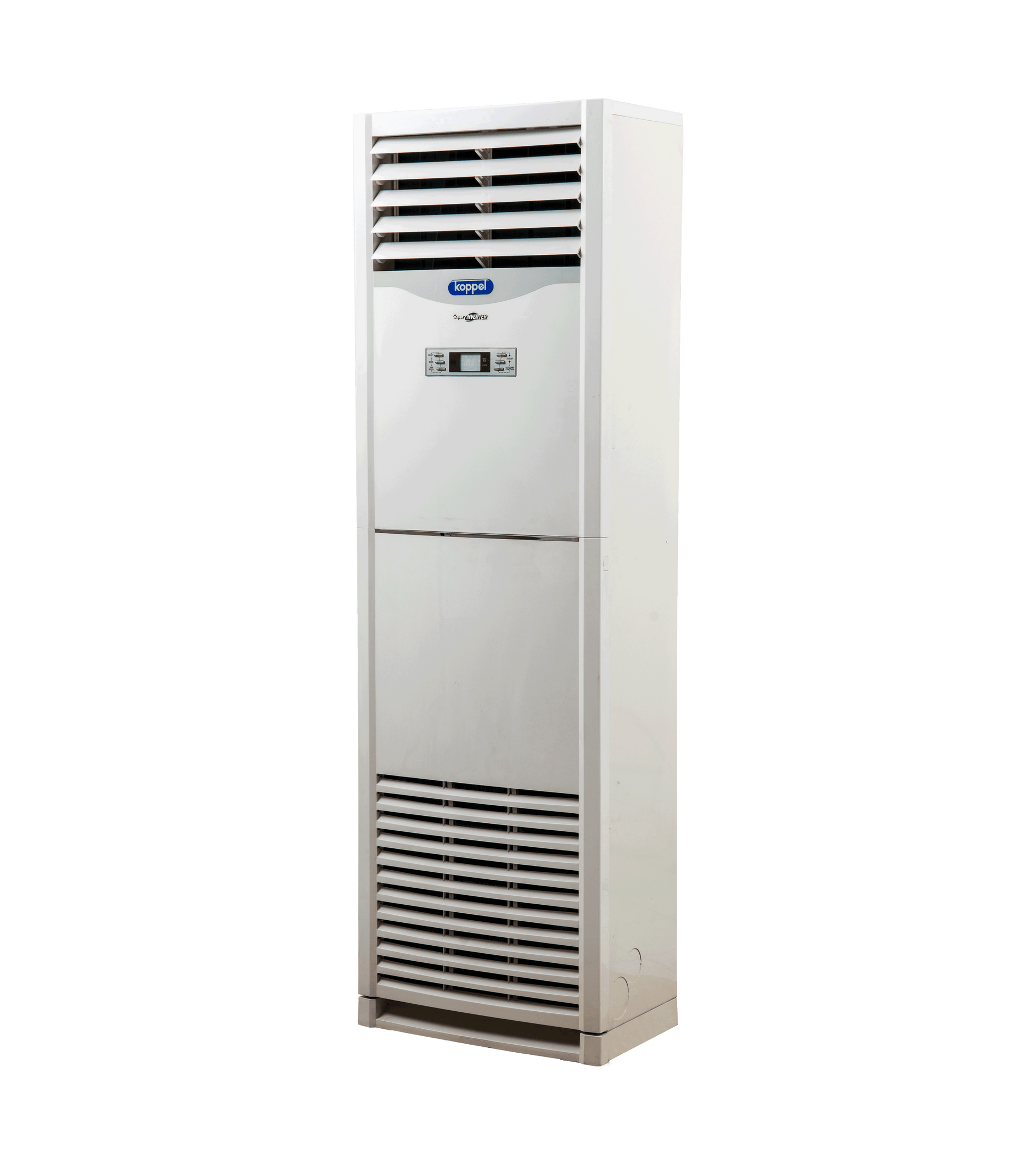

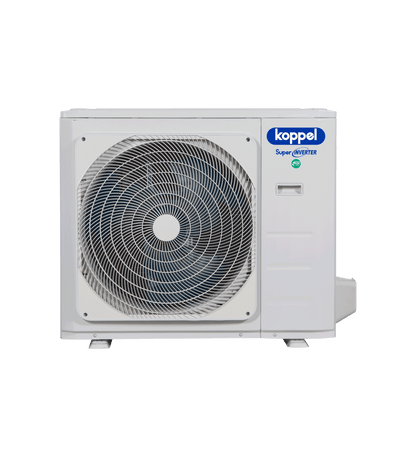

Indoor unit Outdoor unit |
KV36FM-ARF31 KV360DU-ARF31 |
KV60FM-ARF31 KV60ODU-ARF31 |
KV60FM-ARF31 KV60ODU-CRF31 |
|---|---|---|---|---|
| Cooling Capacity | TR | 3.0 | 5.0 | 5.0 |
| BTU/Hr | 37,000 | 55,000 | 57,700 | |
| kJ/Hr | 39,035 | 58,025 | 60,874 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230/ 3/60 |
| Rated Power | W | 3,360 | 5,100 | 4,933 |
| Rated Current | A | 14.60 | 24.10 | 13.90 |
| EER | BTU/W-Hr | 11.01 | 10.78 | 11.70 |
| kJ/W-Hr | 11.62 | 11.38 | 12.34 | |
| CSPF | 4.26 | 4.47 | 4.60 | |
| Star Rating | ★★★★★ | ★★★★★ | ★★★★★ | |
| Refrigerant | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 48-70 | 69-102 | 69-102 |
| Airflow Volume Hi/Mi/Low | CMH | 1,760/1,760/1,545 | 2,200/2,200/1,750 | 2,200/2,200/1,750 |
| Noise Level Hi/Mi/Low | dB(A) | 54.5/54.5/51.5 | 53.0/53.0/48.5 | 53.0/53.0/48.0 |
| Indoor | ||||
| Unit Dimension (W×D×H) | mm | 540×410×1,825 | 600×455×1,934 | 600×455×1,934 |
| Packaging Dimension (W×D×H) | mm | 1,965×690×565 | 2,080×755×585 | 2,080×755×585 |
| Unit Weight (Net/Gross) | kg | 48.8/64.5 | 62/82.2 | 62/82.2 |
| Outdoor | ||||
| Unit Dimension (W×D×H) | mm | 890×342×673 | 946×410×810 | 946×410×810 |
| Packaging Dimension (W×D×H) | mm | 995×435×750 | 1,090×500×885 | 1,090×500×885 |
| Unit Weight (Net/Gross) | kg | 43.9/47.1 | 63.9/68.9 | 67.2/72.2 |
| Piping Connections | ||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) |
| Gas Pipe Size (Diameter) | mm (in) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) |
| Max. Refrigerant Pipe Length | m | 30 | 50 | 50 |
| Max. Difference in Level | m | 20 | 30 | 30 |
