| Specification |
Indoor Unit Outdoor Unit |
KFM-36E0W KPC-36IH0W |
KFM-60E0C KPC-60IH0C |
KFM-60E0C KPC-60IV0C |
|---|---|---|---|---|
| Cooling Capacity | TR | 3.0 | 5.0 | 5.0 |
| BTU/Hr | 37,000 | 60,000 | 60,000 | |
| kJ/Hr | 39,035 | 63,300 | 63,300 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230/3 /60 |
230/3 /60 |
| Rated Power | W | 3,980 | 6,500 | 6,770 |
| Rated Current | A | 17.4 | 19.00 | 21.00 |

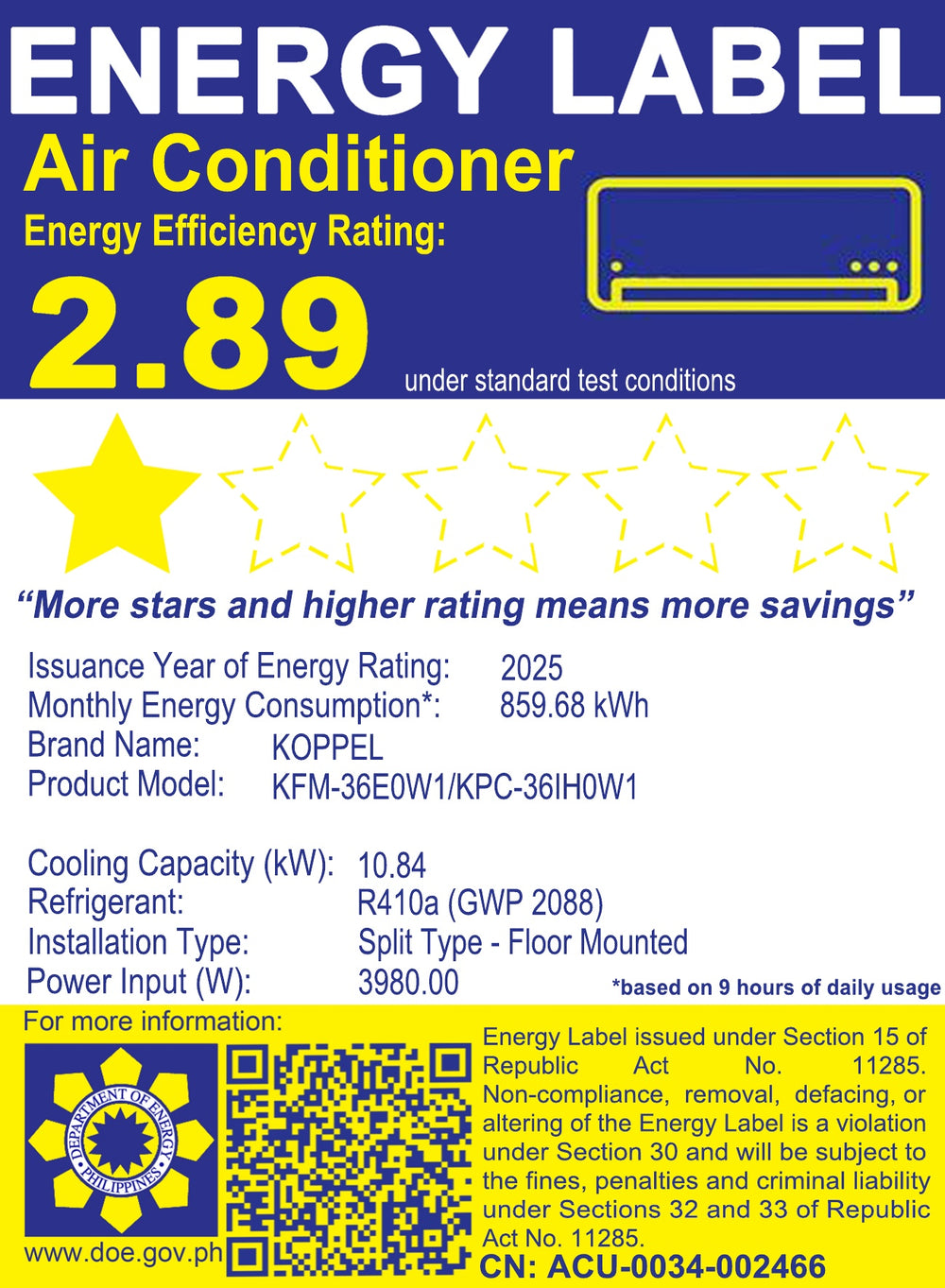

| EER | BTU/W-Hr | 9.30 | 9.23 | 8.86 |
| kJ/W-Hr | 9.81 | 9.74 | 9.35 | |
| Refrigerant | R410A | R410A | R410A | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 43-68 | 70-110 | 70-110 |
| Airflow Volume Hi | CMH | 2,000 | 2,300 | 2,300 |
| Noise Level Low | dB(A) | 50 | 52 | 52 |

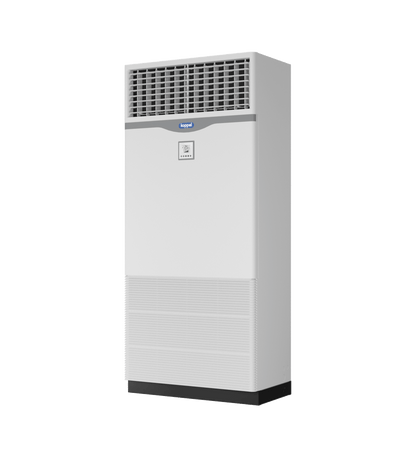

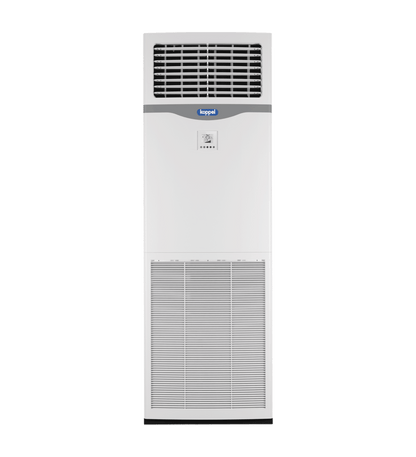

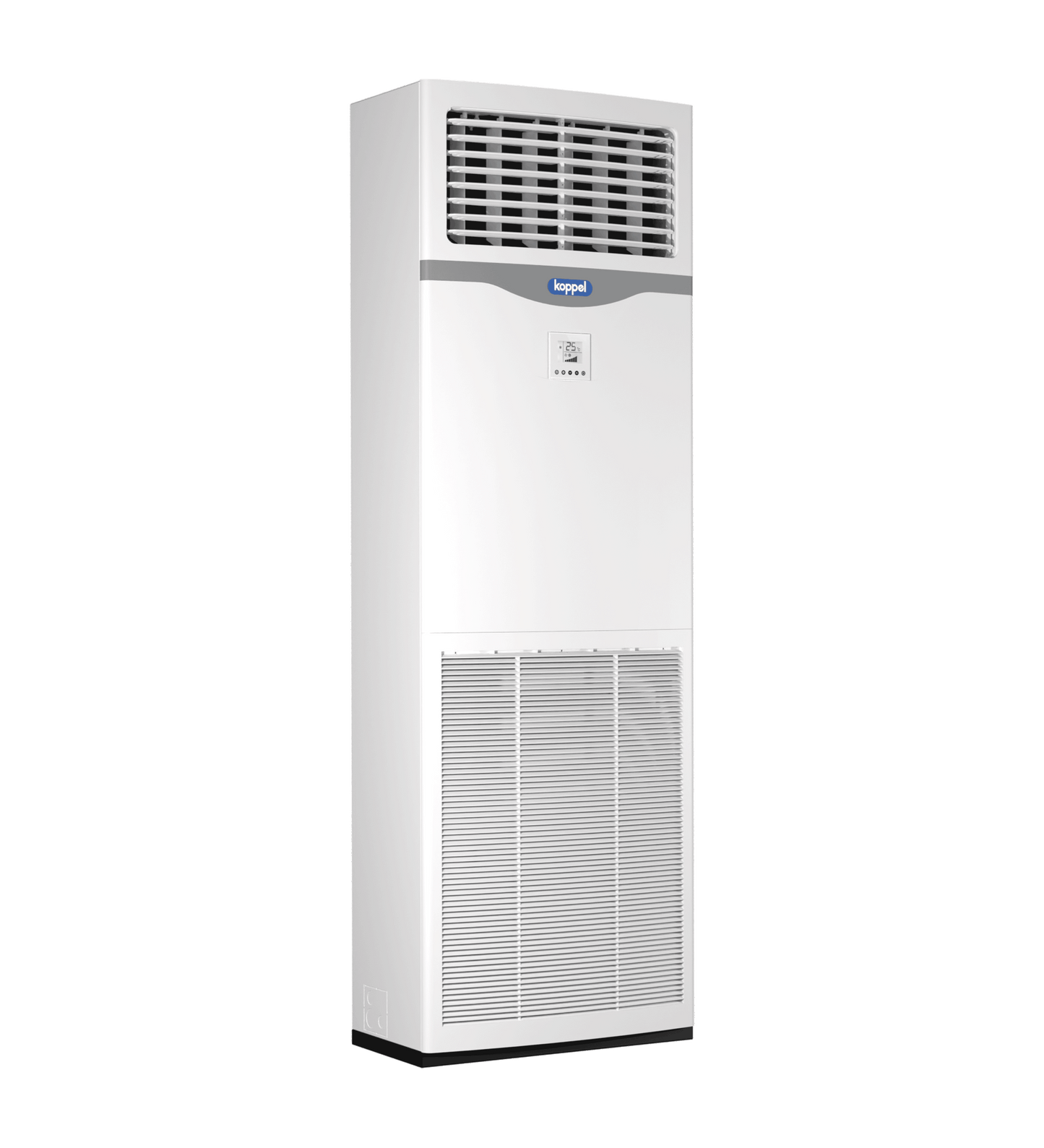

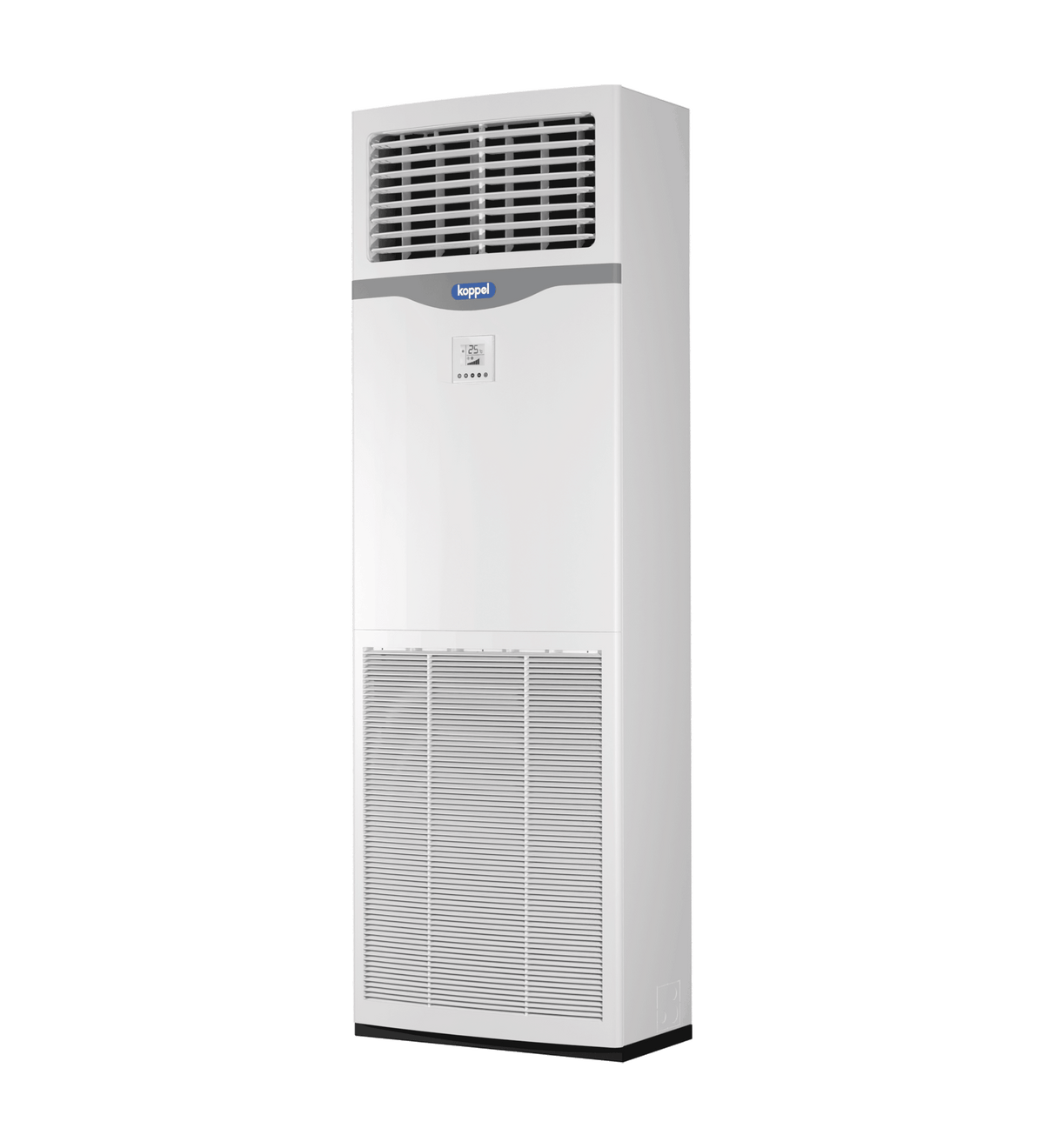

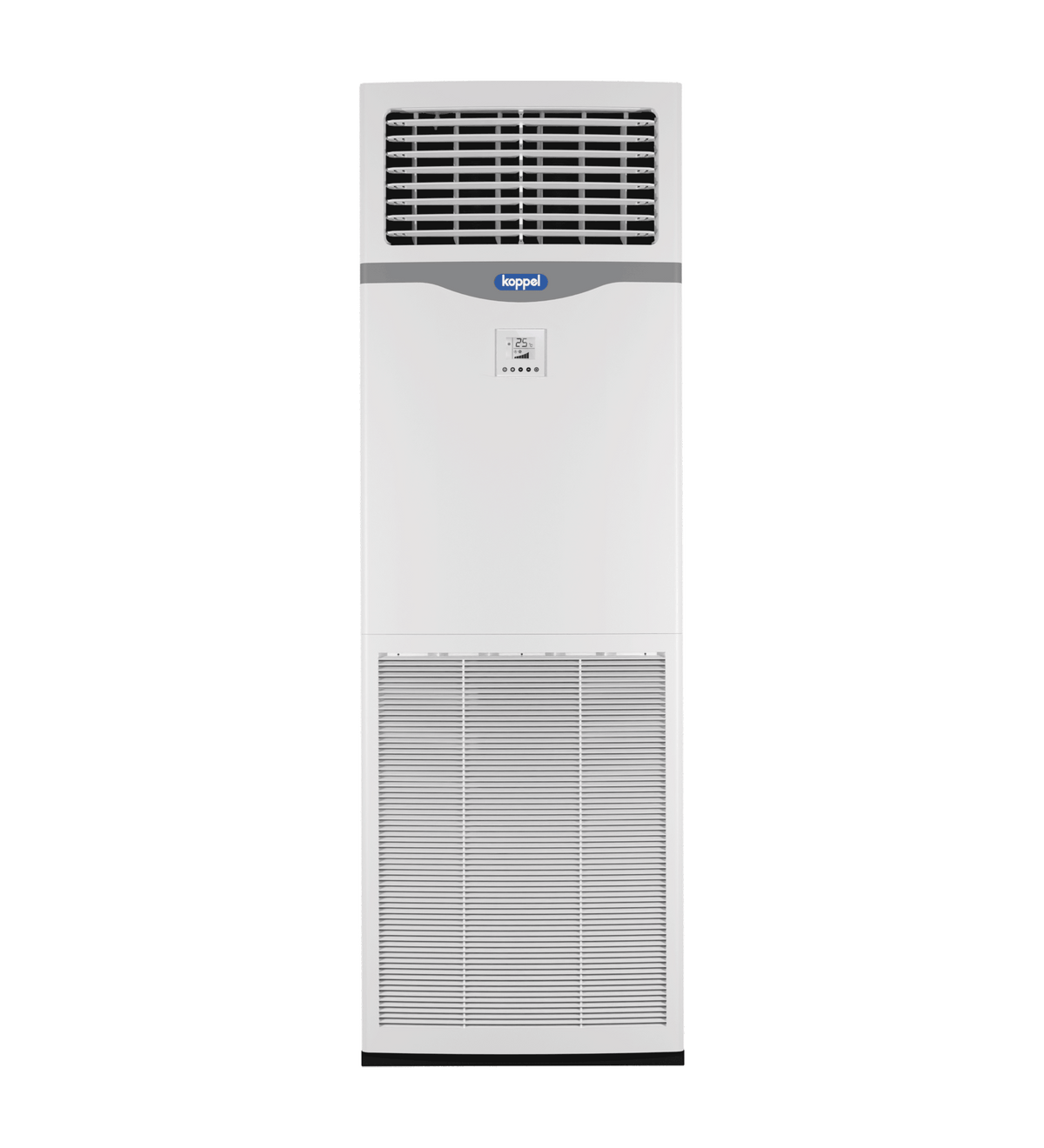

| Indoor | ||||
| Unit Dimension (W×D×H) | mm | 610×335×1,863 | 610×427×1,900 | 610×427×1,900 |
| Packaging Dimension (W×D×H) | mm | 681×393×1,921 | 680×499×1,945 | 680×499×1,945 |
| Unit Weight (Net/Gross) | kg | 46/51 | 59/62 | 59/62 |

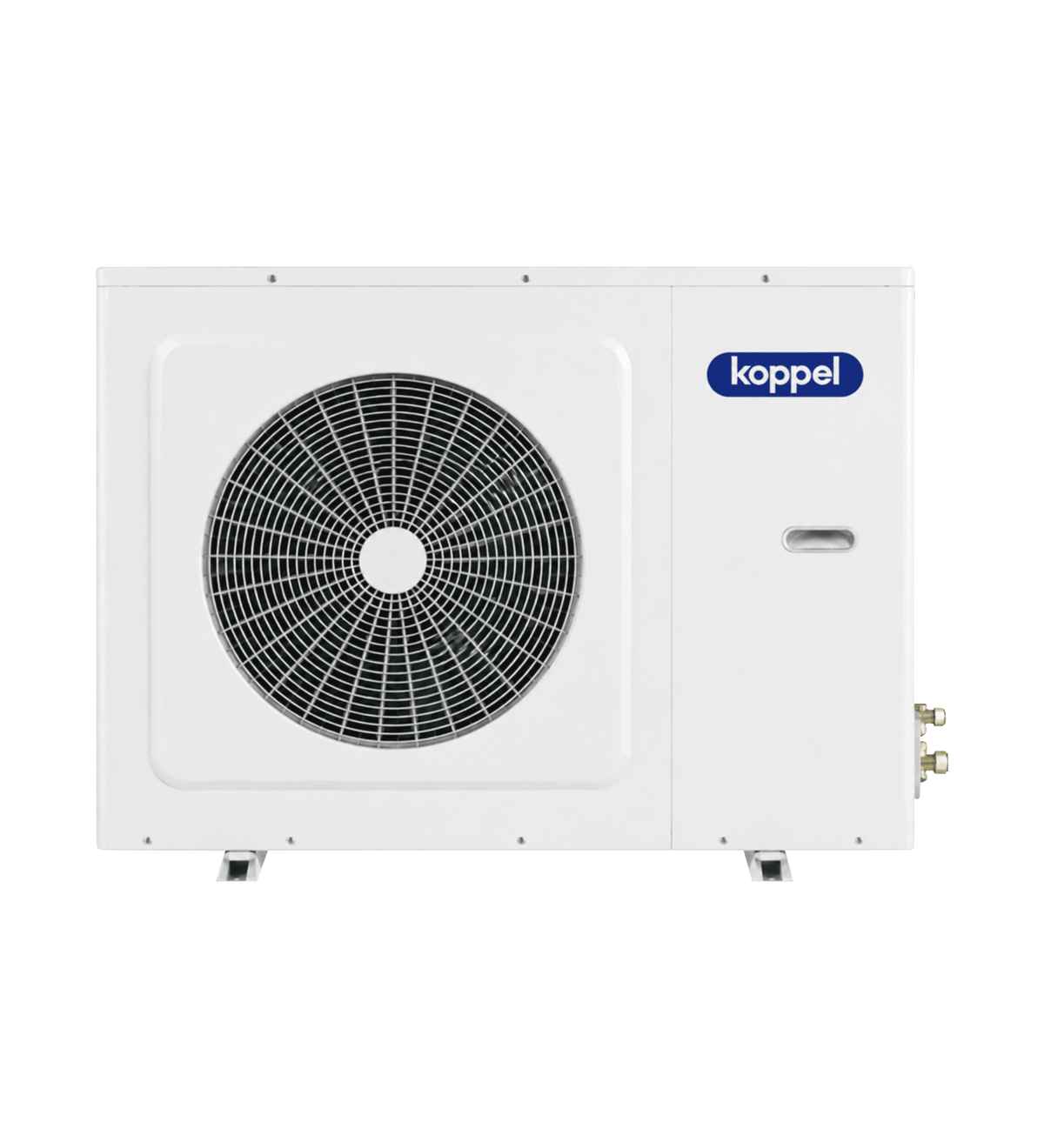

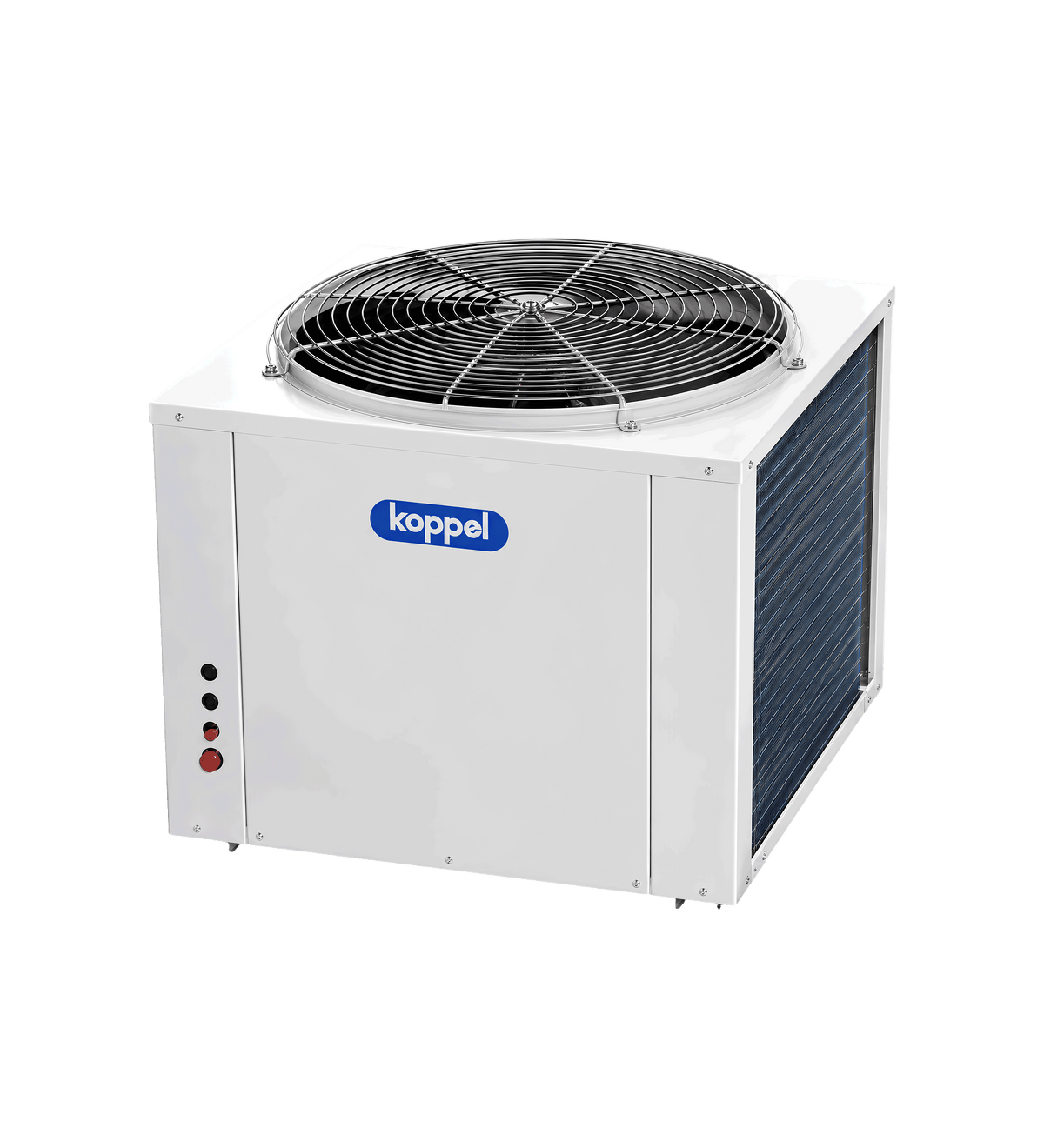

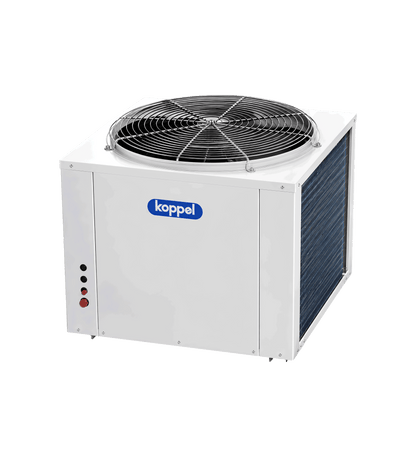

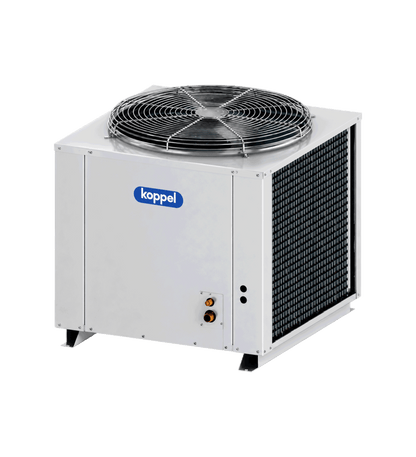

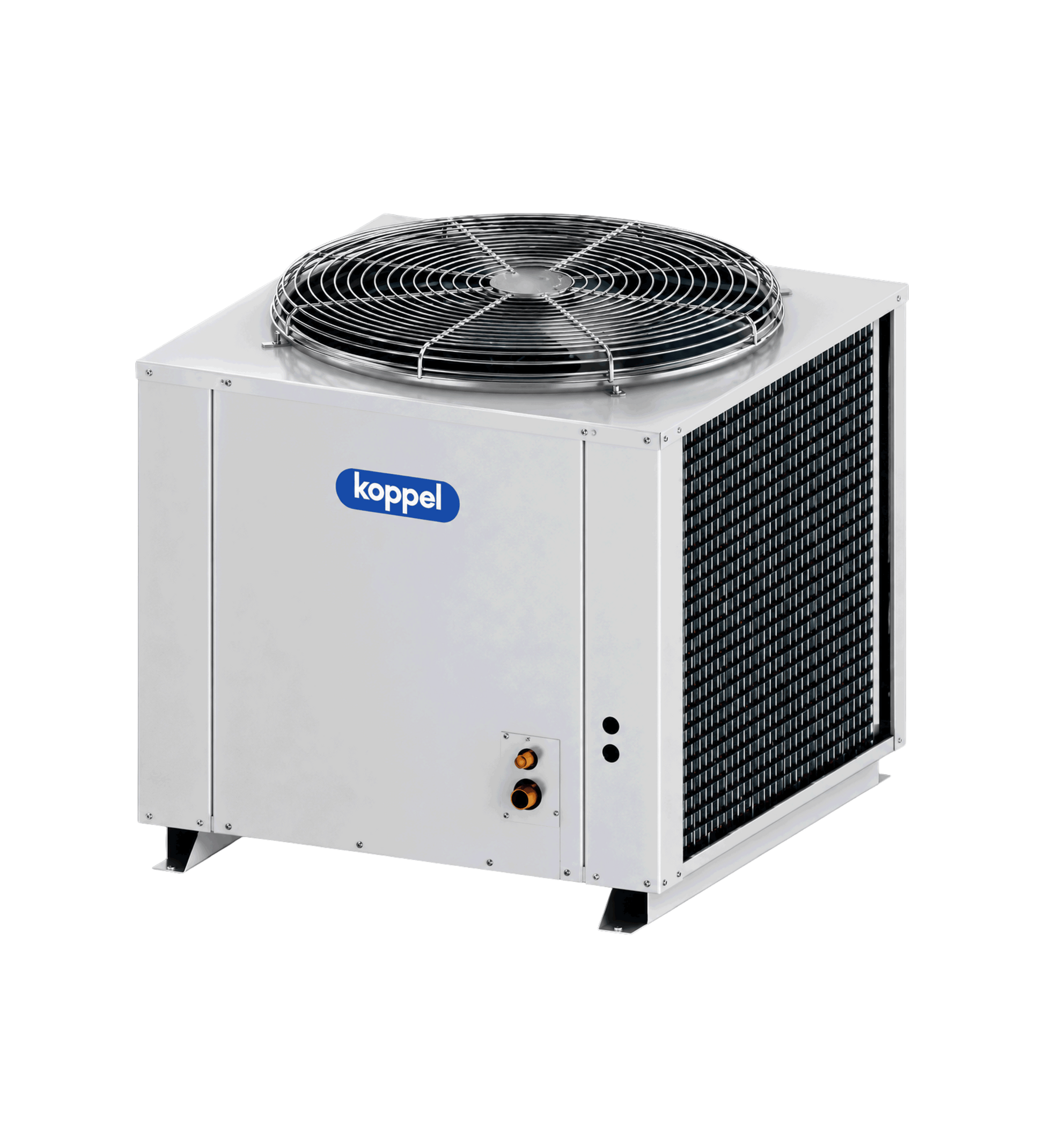

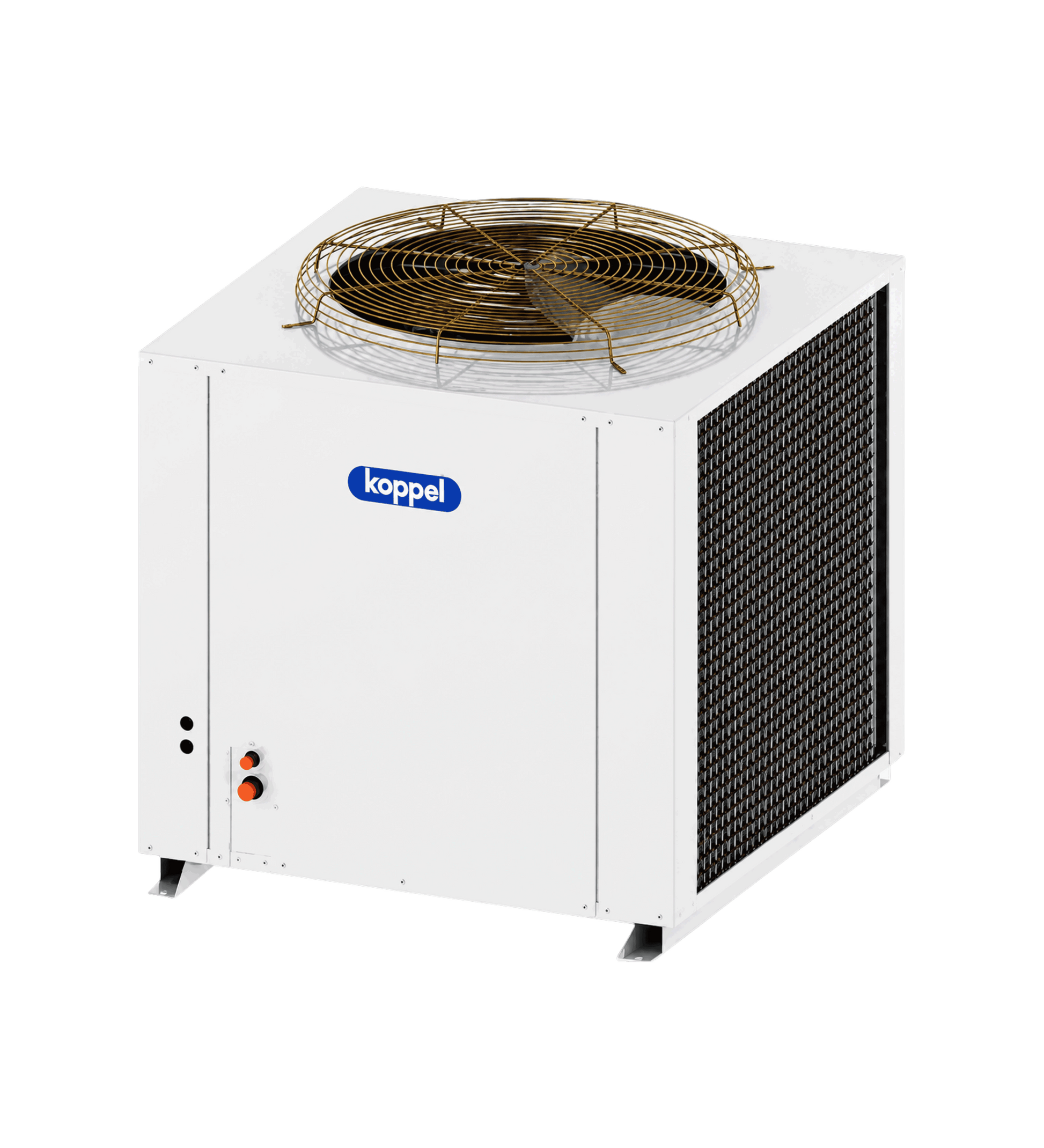

| Outdoor | ||||
| Unit Dimension (W×D×H) | mm | 936×355×812 | 936×355×1,268 | 810×810×727 |
| Packaging Dimension (W×D×H) | mm | 1,079×449×854 | 1,087×457×1,306 | 865×865×690 |
| Unit Weight (Net/Gross) | kg | 72/76 | 110/115 | 92/96 |
| Piping Connections | ||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.53 (Ø3/8) | Ø12.7 (Ø1/2) | Ø12.7 (Ø1/2) |
| Gas Pipe Size (Diameter) | mm (in) | Ø15.875 (Ø5/8) | Ø22.23 (Ø7/8) | Ø22.23 (Ø7/8) |
| Max. Refrigerant Pipe Length | m | 30/50 | 30/50 | 30/50 |
| Max. Difference in Level | m | 8 | 8 | 8 |
