| Specification |
Indoor Unit Outdoor Unit |
KCM-36R3DA KPC-36JV3DA |
KCM-60R3DA KPC-60JV3DA |
|---|---|---|---|
| Cooling Capacity | TR | 3.0 | 5.0 |
| BTU/Hr | 34,800 | 51,800 | |
| kJ/Hr | 36,714 | 54,649 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230/3 /60+N+G |
| Rated Power | W | 3,950 | 6,020 |
| Rated Current | A | 18.02 | 18.50 |
| EER | BTU/W-Hr | 8.81 | 8.60 |
| kJ/W-Hr | 9.29 | 9.08 | |
| Star Rating | ★ | ★ | |
| Refrigerant | R410A | R410A | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 38-63 | 60-100 |
| Airflow Volume Hi/Mi/Low | CMH | 1,722/1,459/1,281 | 2,548/2,104/1,790 |
| Noise Level Low | dB(A) | 53/49/50 | 58.7/54.1/49.3 |

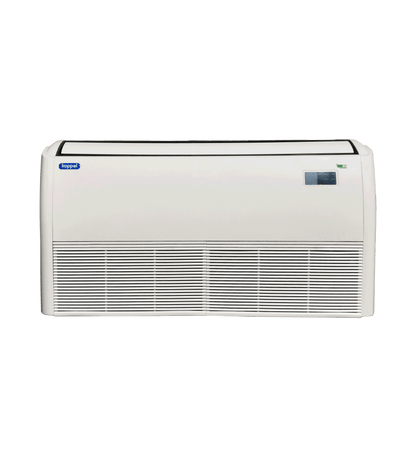

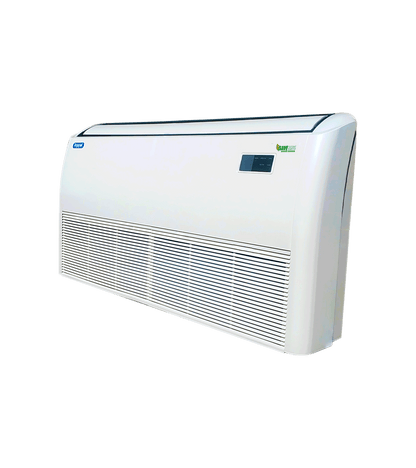

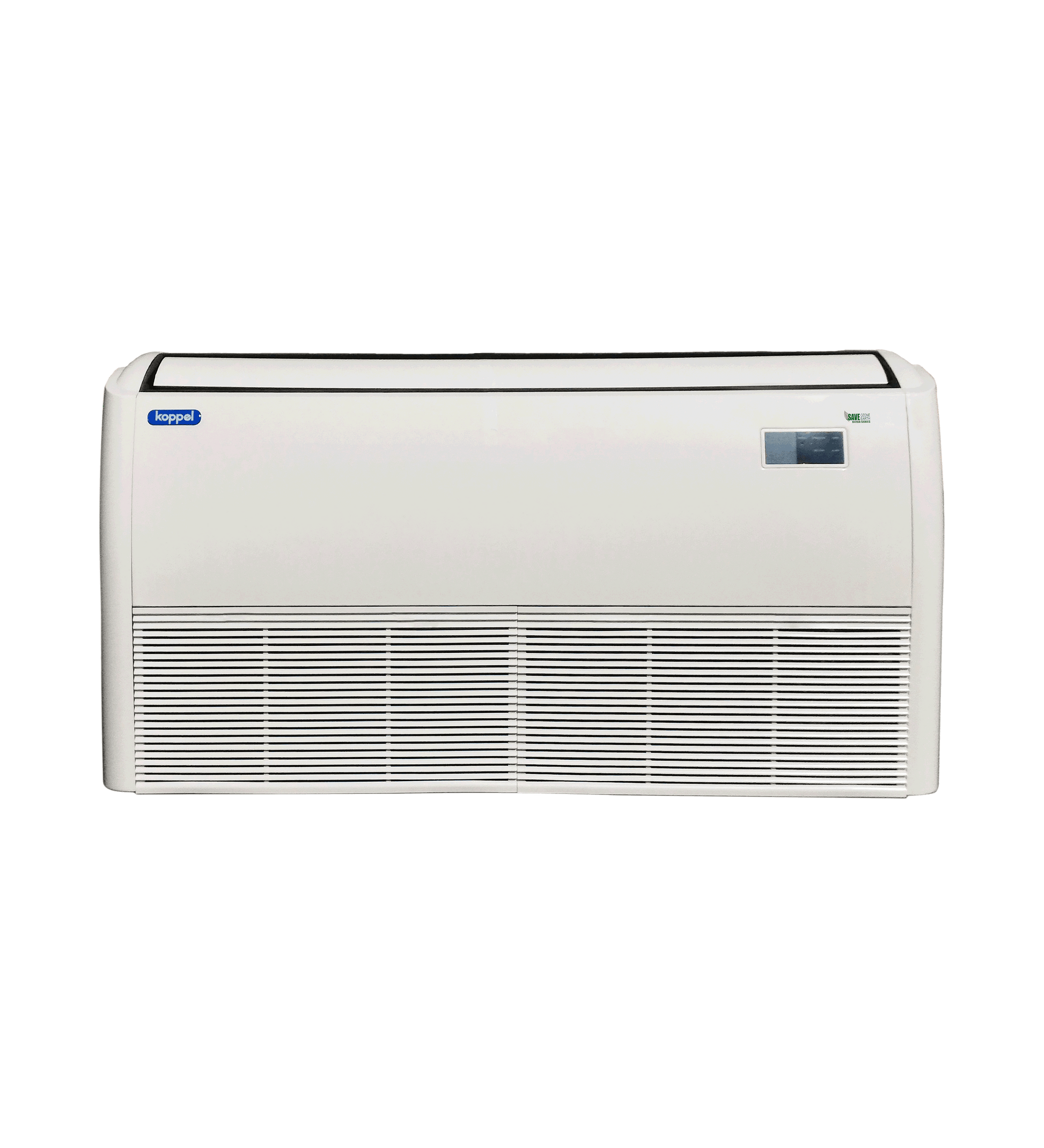

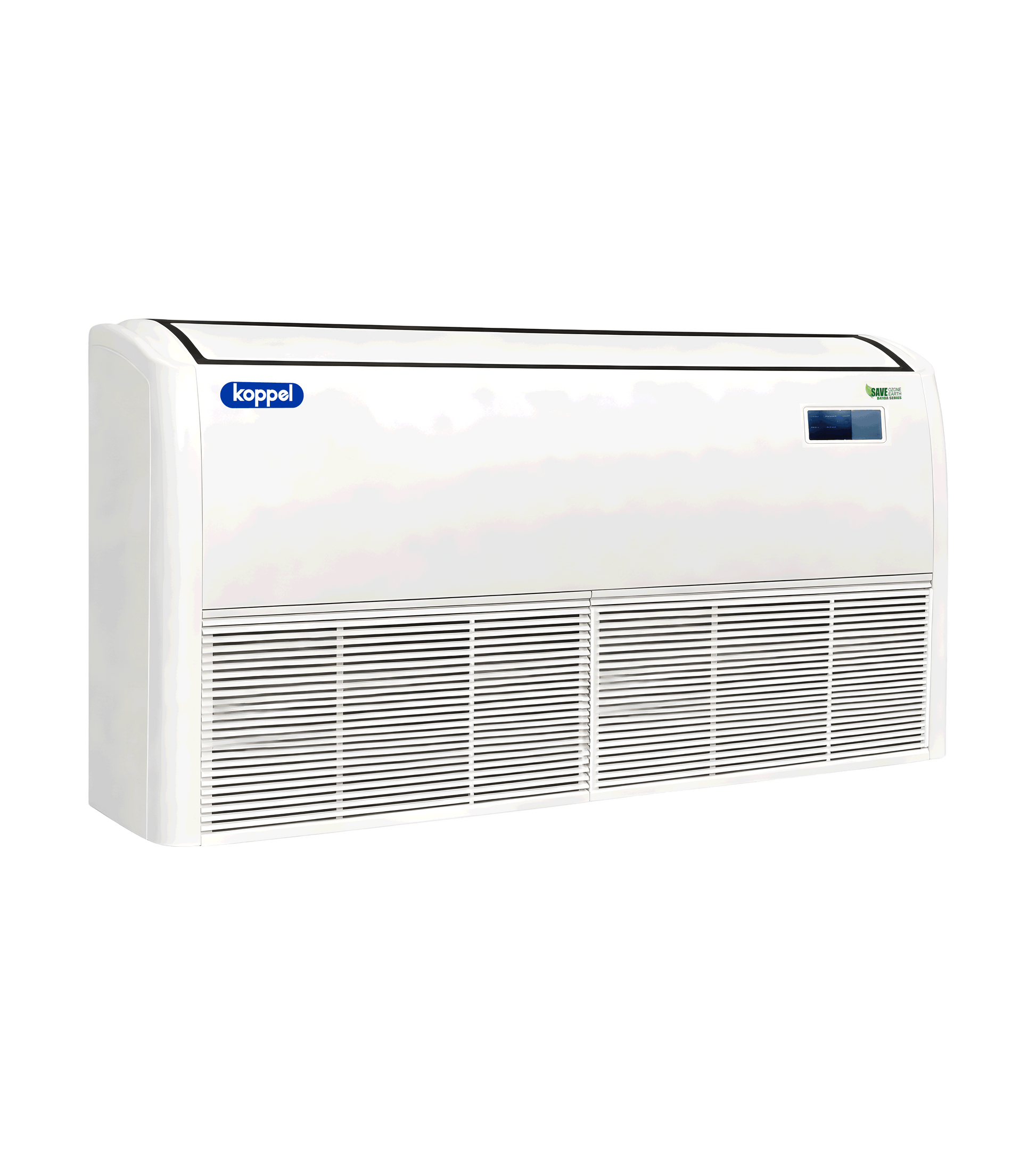

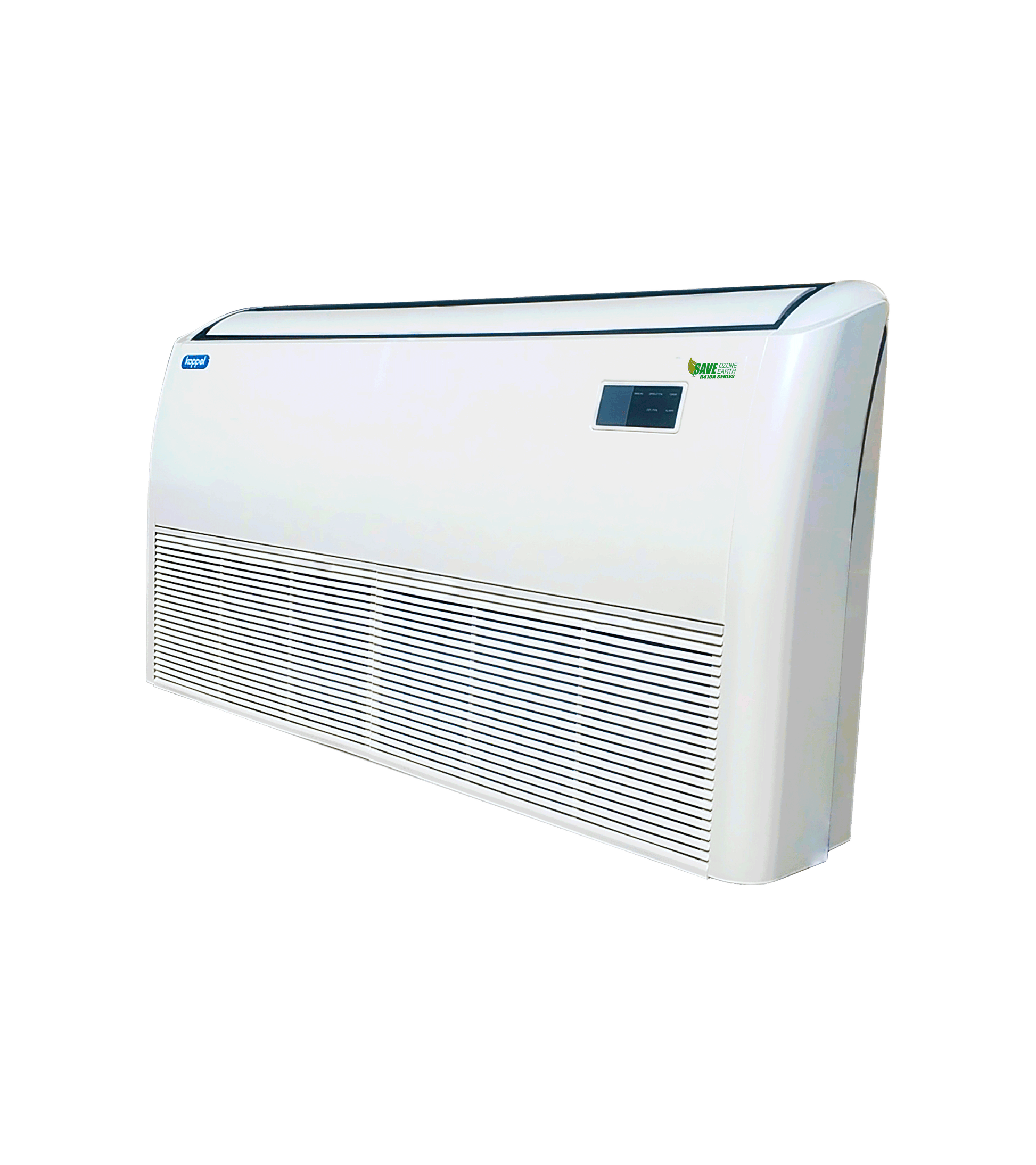

| Indoor | |||
| Unit Dimension (W×D×H) | mm | 1,285×675×235 | 1,650×675×235 |
| Packaging Dimension (W×D×H) | mm | 1,360×755×318 | 1,725×755×318 |
| Unit Weight (Net/Gross) | kg | 31.3/37 | 41.2/47.7 |

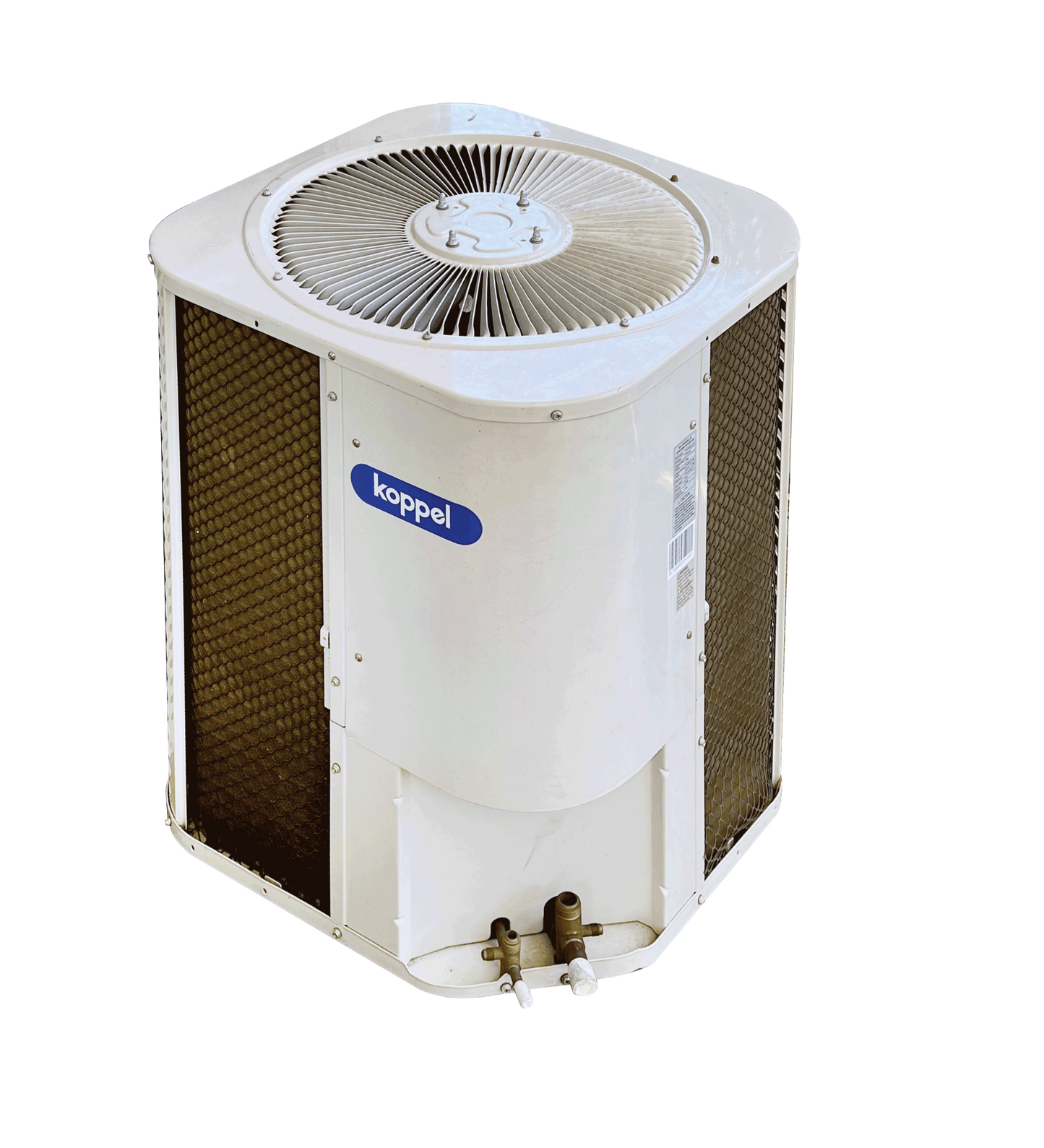

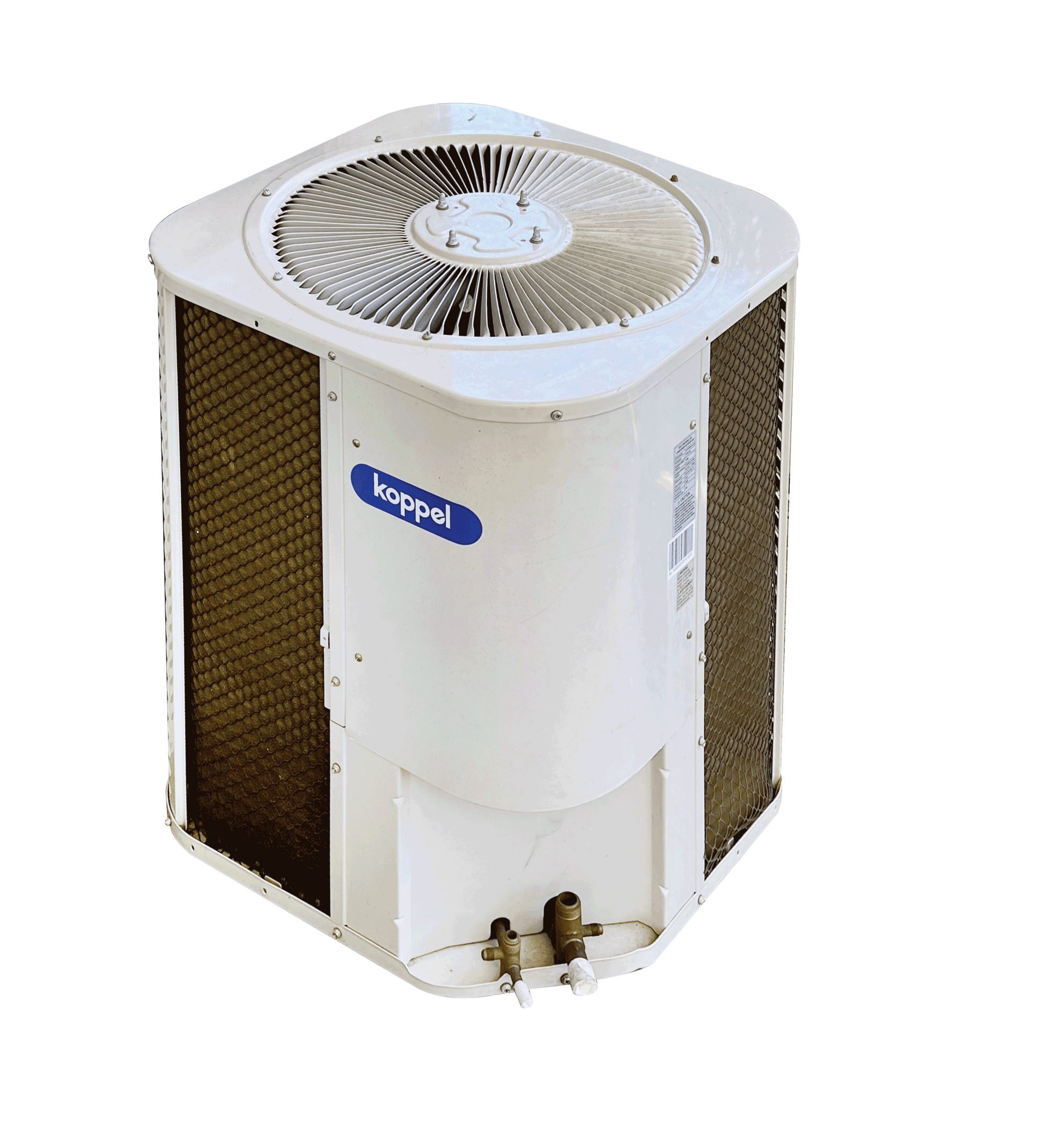

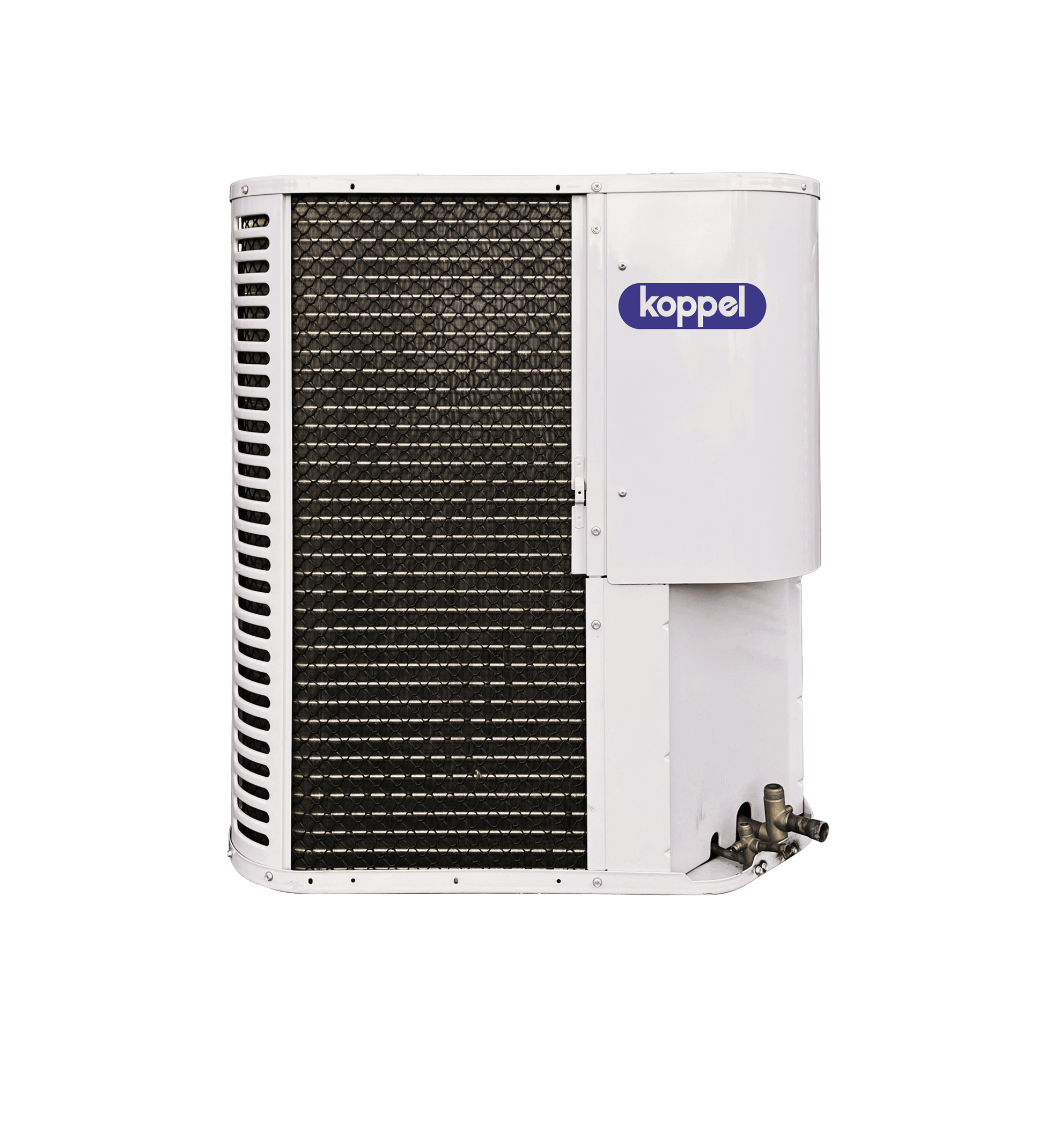

| Outdoor | |||
| Unit Dimension (W×D×H) | mm | 600×600×759 | 710×710×843 |
| Packaging Dimension (W×D×H) | mm | 628×628×794 | 738×738×872 |
| Unit Weight (Net/Gross) | kg | 57.8/61.4 | 78.2/82.8 |
| Piping Connections | |||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) |
| Gas Pipe Size (Diameter) | mm (in) | Ø19.05 (Ø3/4) | Ø19.05 (Ø3/4) |
| Max. Refrigerant Pipe Length | m | 30 | 50 |
| Max. Difference in Level | m | 20 | 30 |
