| Specification |

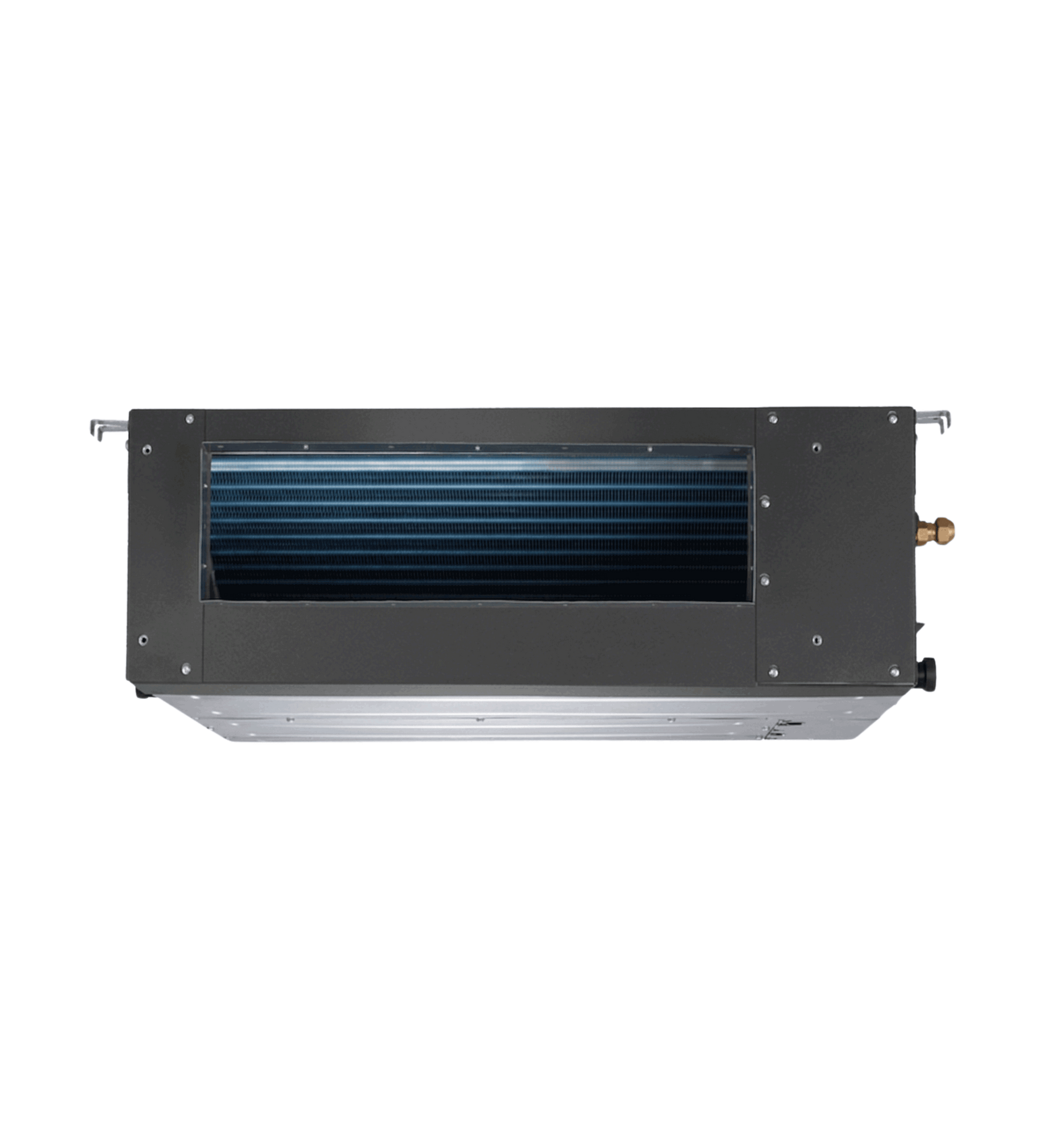

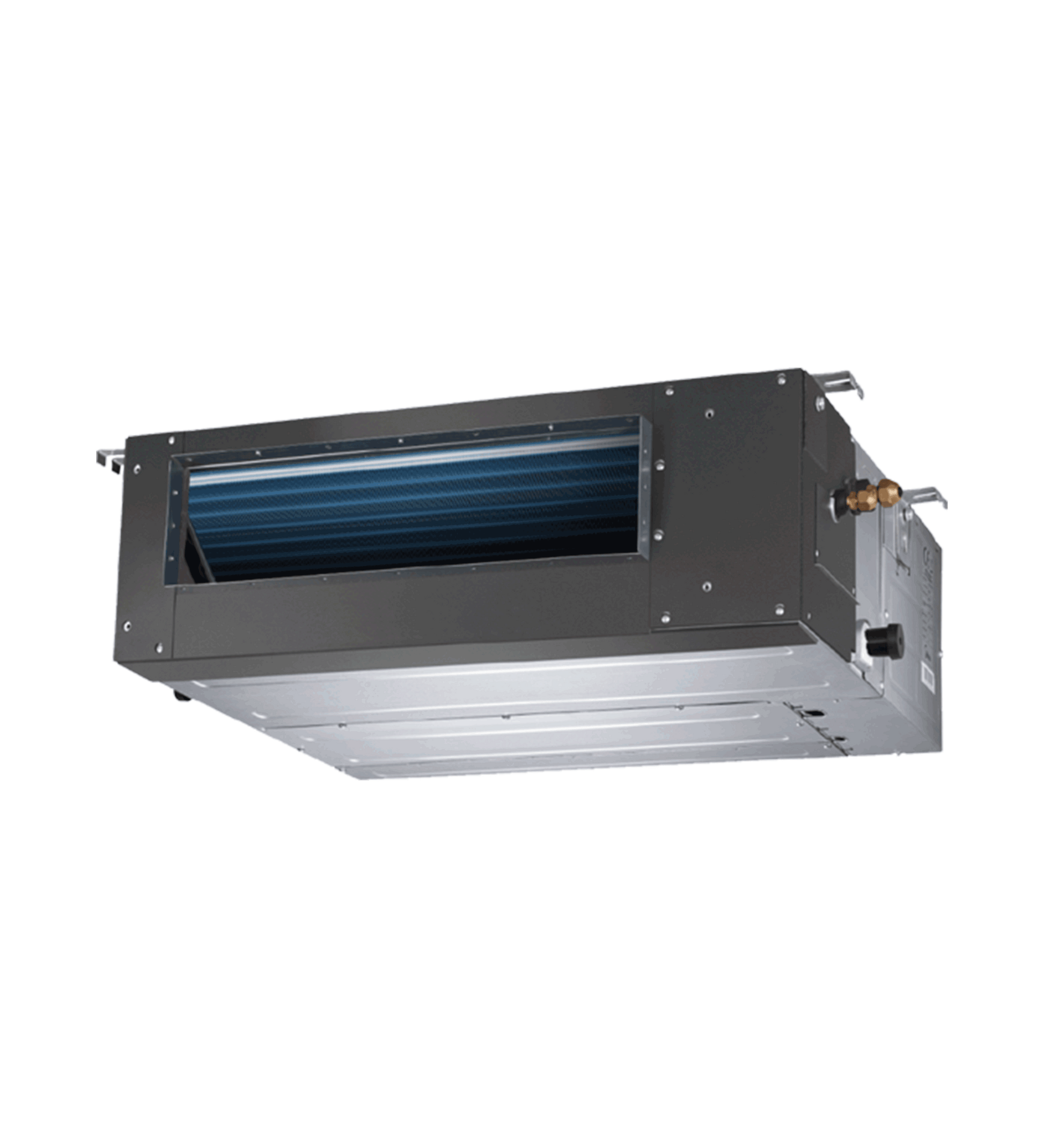

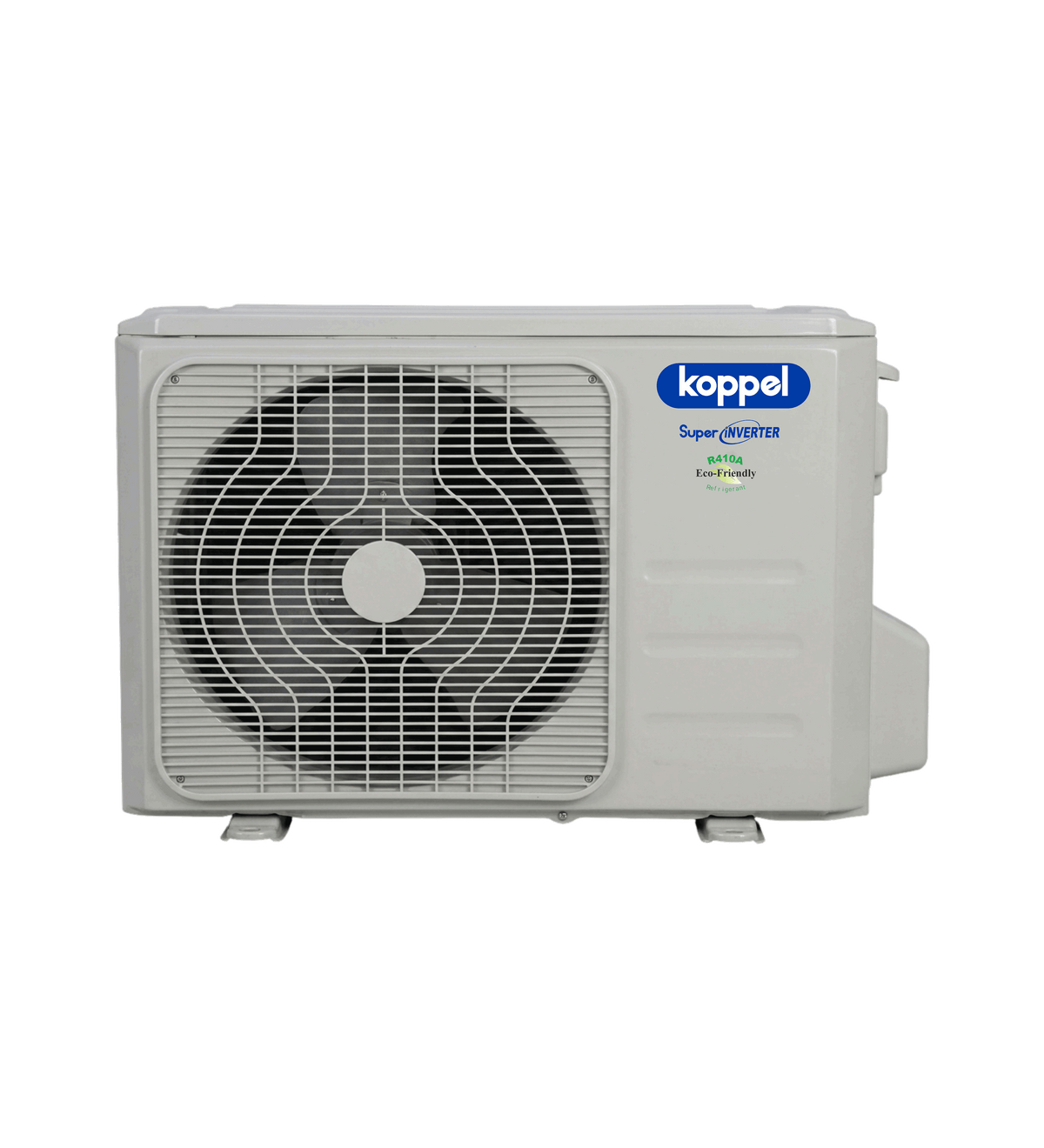

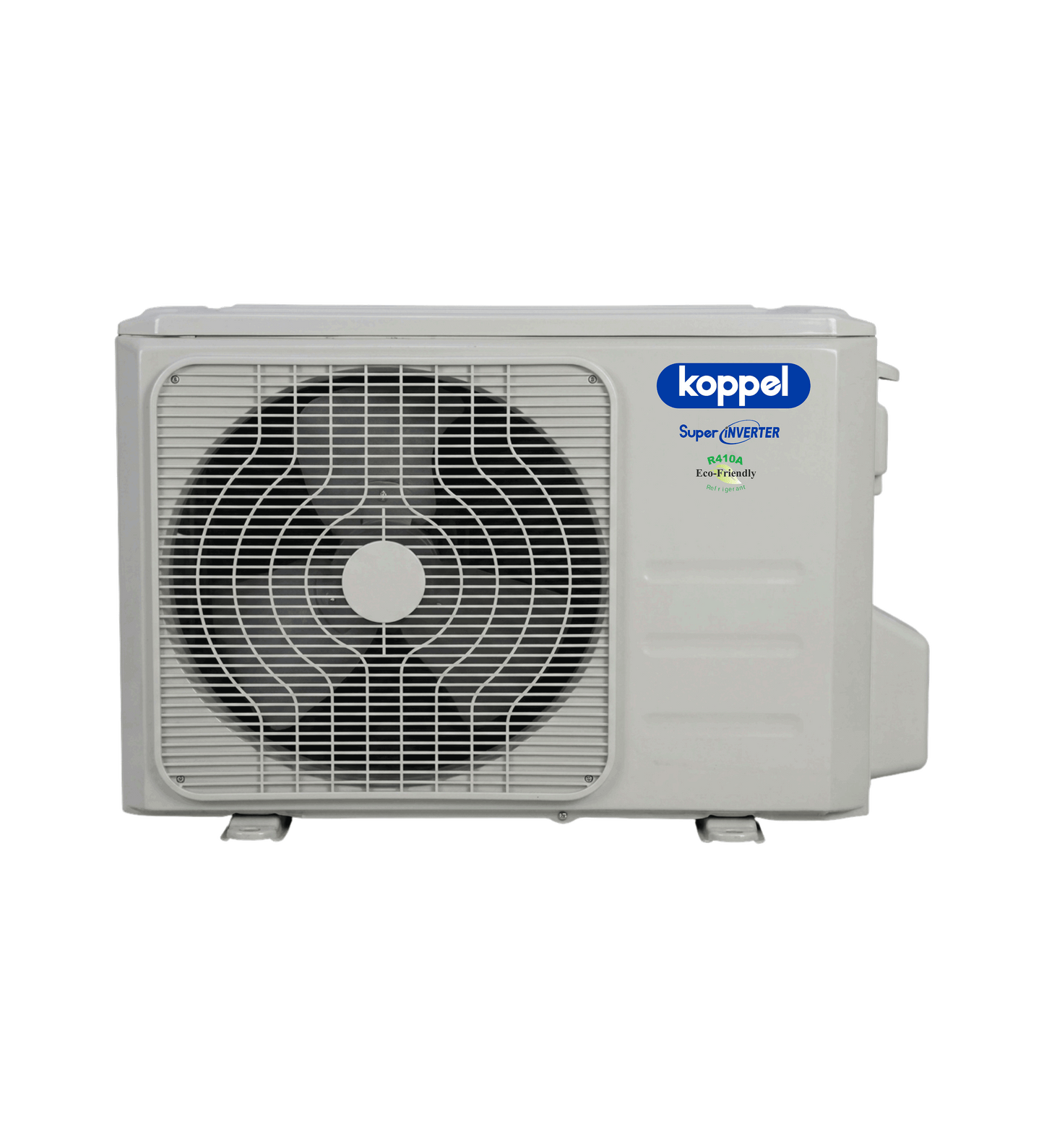

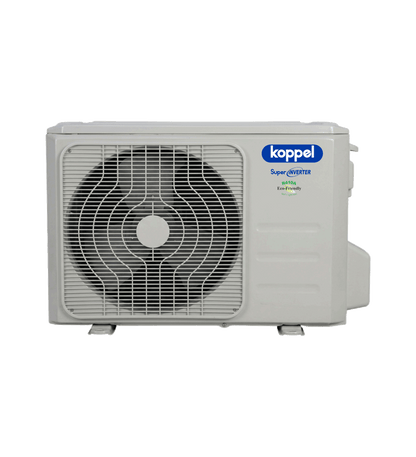

Indoor Unit Outdoor Unit |
KV24DH-ARF31C KV24ODU-ARF31C |
KV36DH-ARF31C KV36ODU-ARF31C |
KV48DH-ARF31C KV48ODU-ARF31C |
|---|---|---|---|---|
| Cooling Capacity | TR | 2.0 | 3.0 | 4.0 |
| BTU/h | 26,500 | 37,000 | 49,000 | |
| kJ/h | 27,958 | 39,035 | 51,695 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230 /60 |
| Rated Power | W | 2,280 | 3,880 | 4,780 |
| Rated Current | A | 10.2 | 18.0 | 22.0 |
| EER | BTU/H-W | 11.62 | 9.54 | 10.25 |
| KJ/H-W | 12.26 | 10.06 | 10.81 | |
| Refrigerant | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 17 30 |
17 30 |
17 30 |
| Applicable Area | m² | 32 47 |
48 70 |
64 94 |
| Airflow Volume Hi/Mi/Low | m²/h | 1,200/1,000/700 | 1,700/1,400/1,100 | 2,000/1,700/1,300 |
| Noise Level Hi/Mi/Low | dB(A) | 33.5/32.5/31 | 38/36/33 | 46/44/42 |
| Indoor | ||||
| Unit Dimension (W×D×H) | mm | 1,000×750×245 | 1,200×750×245 | 1,200×750×245 |
| Packaging Dimension (W×D×H) | mm | 1,225×860×304 | 1,425×860×304 | 1,425×860×304 |
| Unit Weight (Net/Gross) | kg | 31.8/37.2 | 38.4/44.4 | 40.4/46.8 |
| Outdoor | ||||
| Unit Dimension (W×D×H) | mm | 890×342×680 | 946×420×810 | 980×415×975 |
| Packaging Dimension (W×D×H) | mm | 995×398×740 | 1,090×500×885 | 1,145×500×1,080 |
| Unit Weight (Net/Gross) | kg | 41.9/45.2 | 66.9/71.5 | 82.5/97 |
| Piping Connections | ||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) |
| Gas Pipe Size (Diameter) | mm (in) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) |
| Max. Refrigerant Pipe Length | m | 50 | 75 | 75 |
| Max. Difference in Level | m | 25 | 30 | 30 |
