| Specification |
Indoor Unit Outdoor Unit |
KV36CM-ARF31 KV36ODU-ARF31 |
KV60CM-ARF31 KV60ODU-ARF31 |
KV60CM-ARF31 KV60ODU-CRF31 |
|---|---|---|---|---|
| Cooling Capacity | TR | 3.0 | 5.0 | 5.0 |
| BTU/Hr | 36,000 | 55,000 | 56,200 | |
| kJ/Hr | 37,980 | 58,025 | 59,291 | |
| Power Supply | V/Ph/Hz | 230 /60 |
230 /60 |
230/3 /60 |
| Rated Power | W | 3,375 | 5,630 | 5,383 |
| Rated Current | A | 15.0 | 25.0 | 15.0 |
| EER | BTU/W-Hr | 10.67 | 9.77 | 10.44 |
| kJ/W-Hr | 11.25 | 10.31 | 11.01 | |
| CSPF | 4.71 | 4.45 | 4.48 | |
| Star Rating | ★★★★★ | ★★★★★ | ★★★★★ | |
| Refrigerant | R32 | R32 | R32 | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 48-70 | 69-102 | 69-102 |
| Airflow Volume Hi/Mi/Low | CMH | 1,722/1,459/1,281 | 2,400/2,100/1,900 | 2,400/2,100/1,900 |
| Noise Level Hi/Mi/Low | dB(A) | 55/51/47 | 57/54/52 | 55/52/49 |

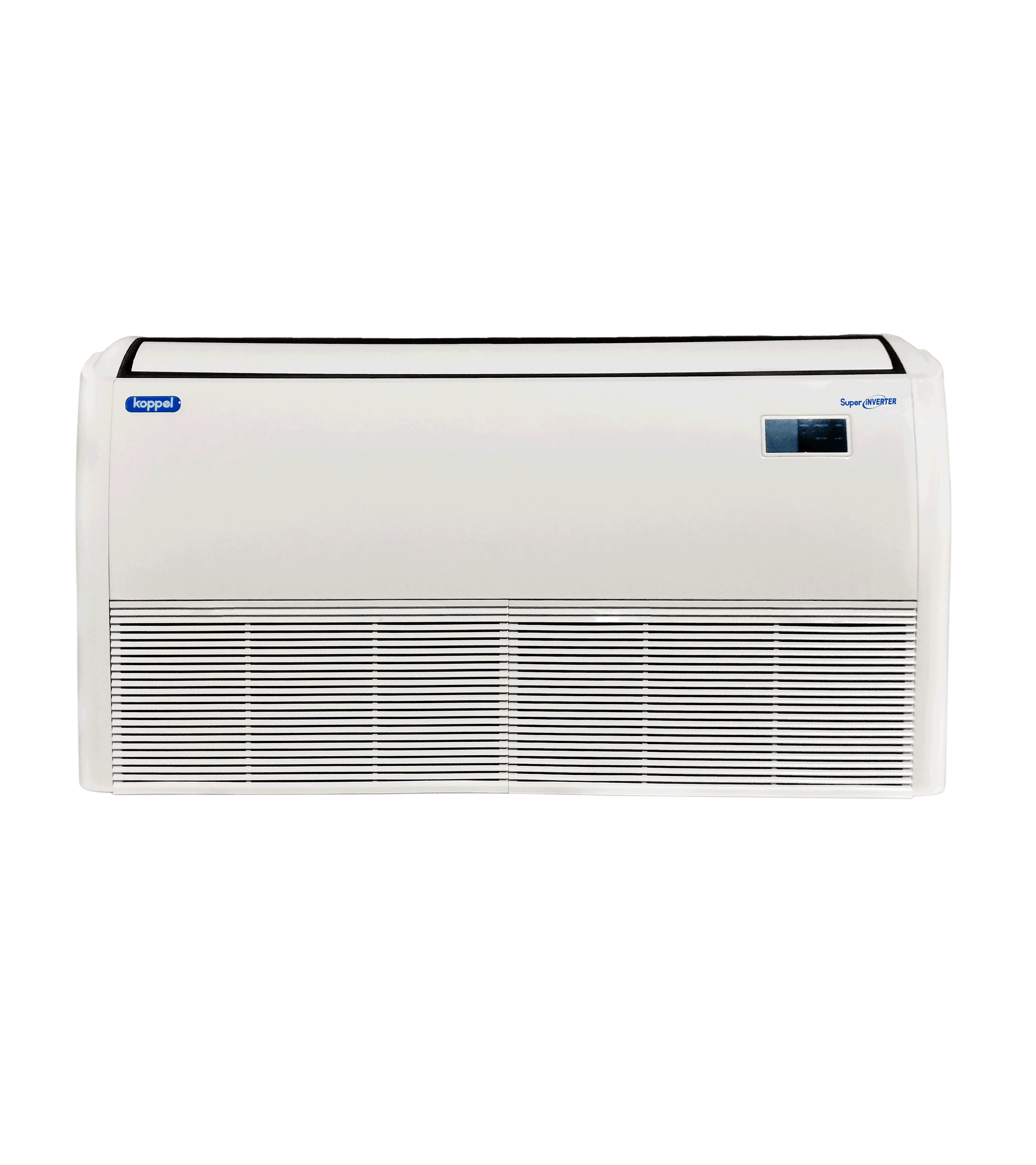

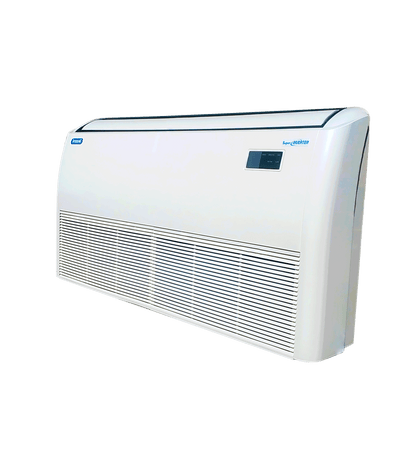

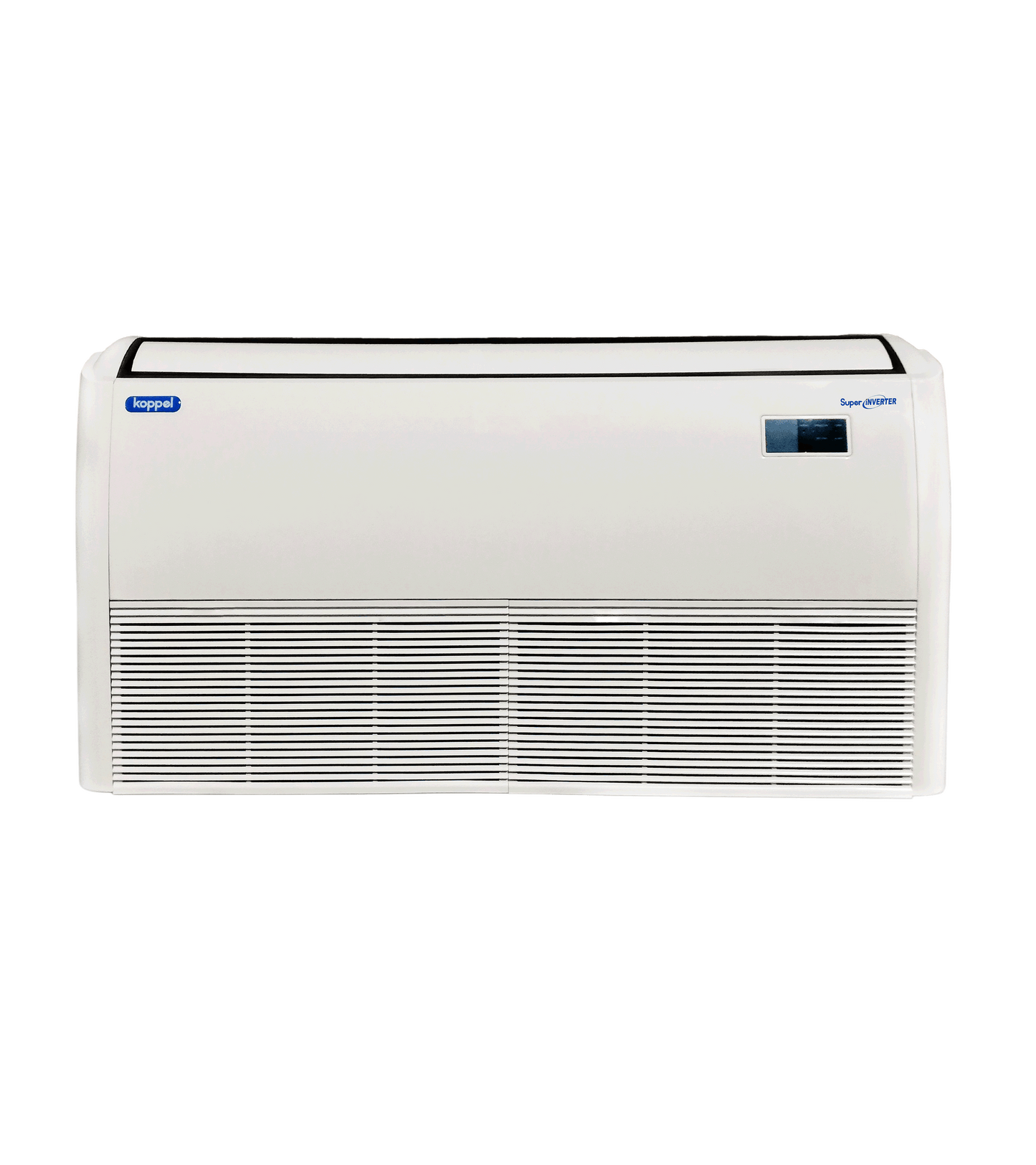

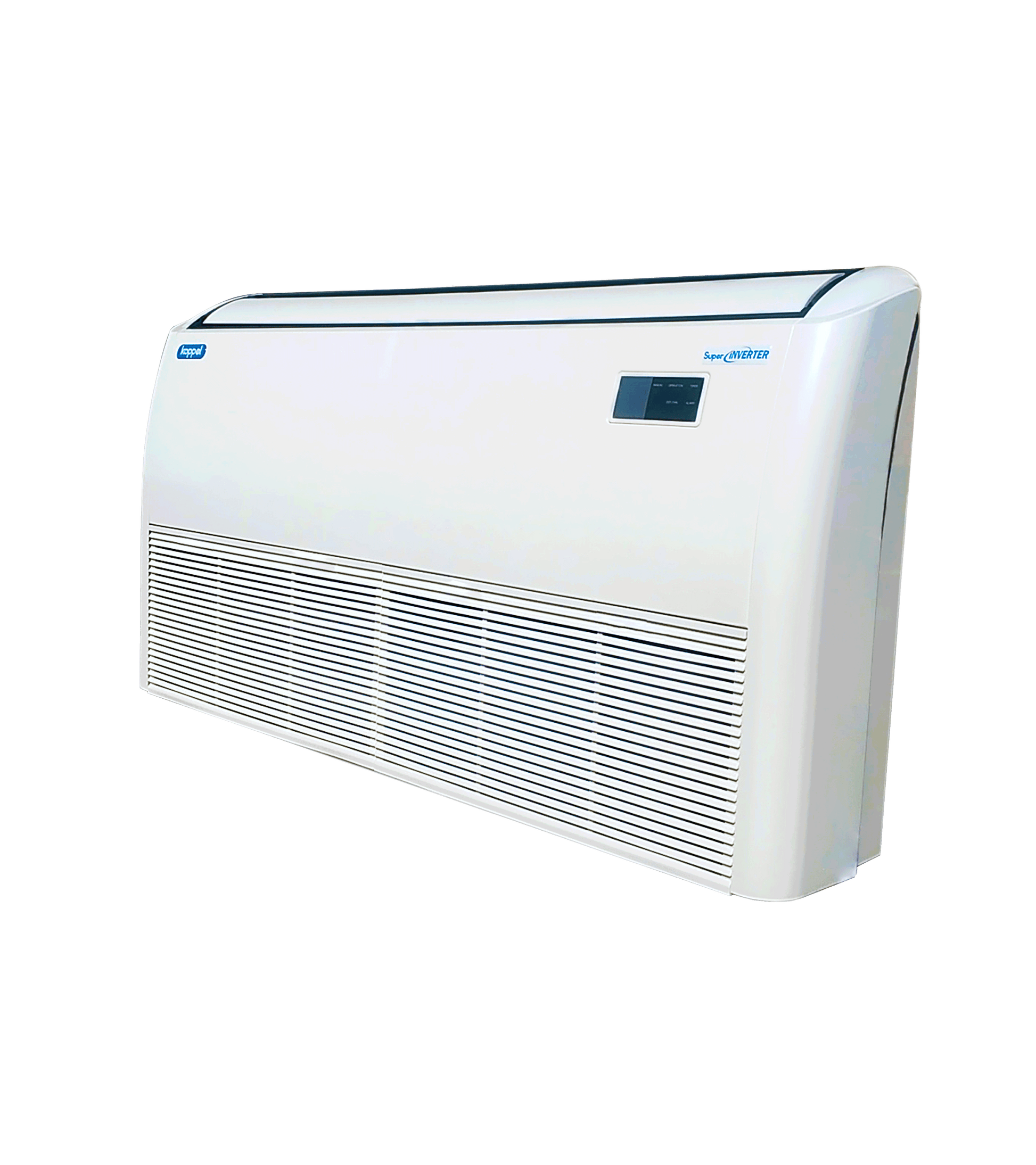

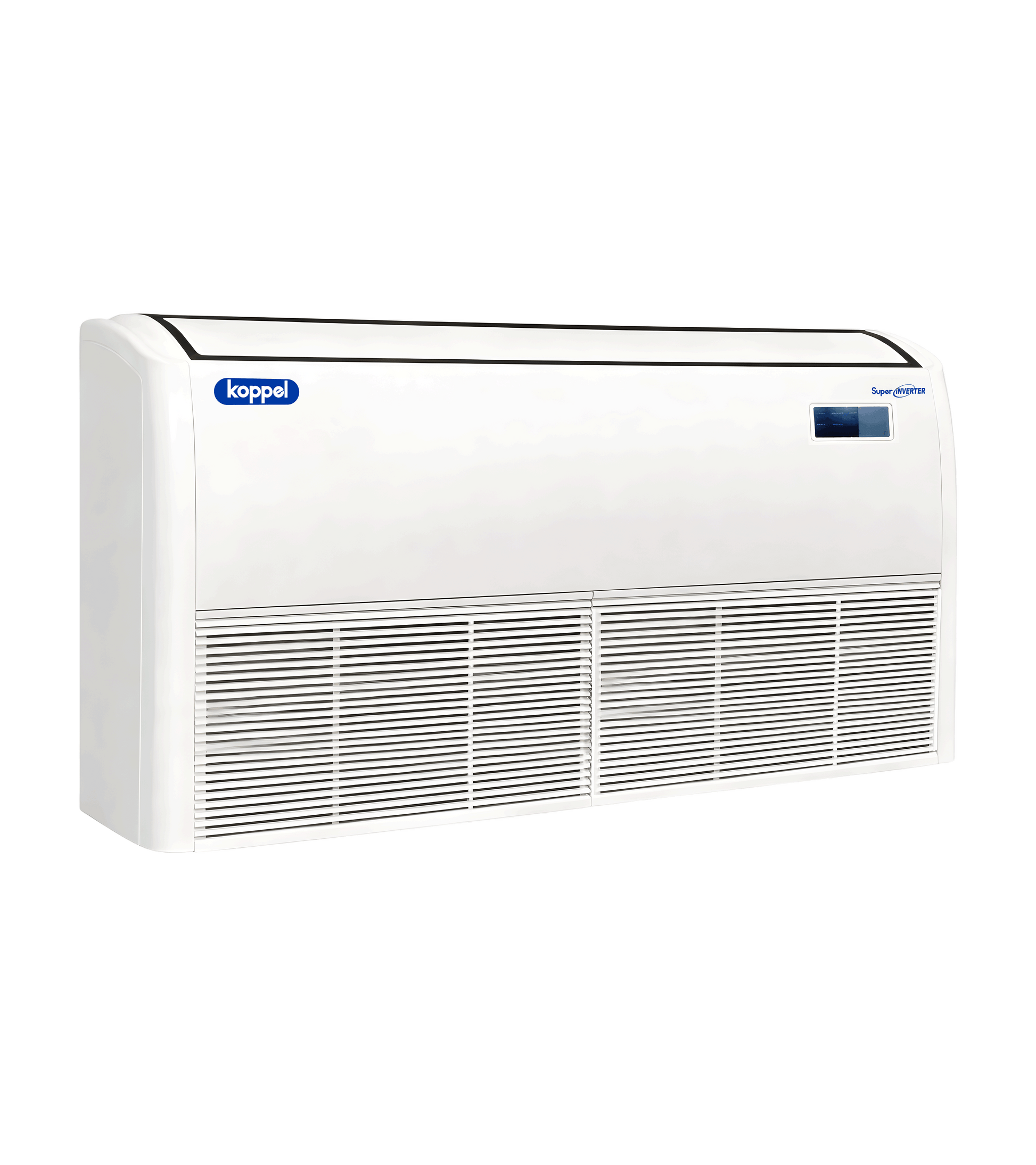

| Indoor | ||||
| Unit Dimension (W×D×H) | mm | 1,285×675×235 | 1,650×675×235 | 1,650×675×235 |
| Packaging Dimension (W×D×H) | mm | 1,360×755×318 | 1,725×755×318 | 1,725×755×318 |
| Unit Weight (Net/Gross) | kg | 32/38 | 42/49.1 | 42/49.1 |

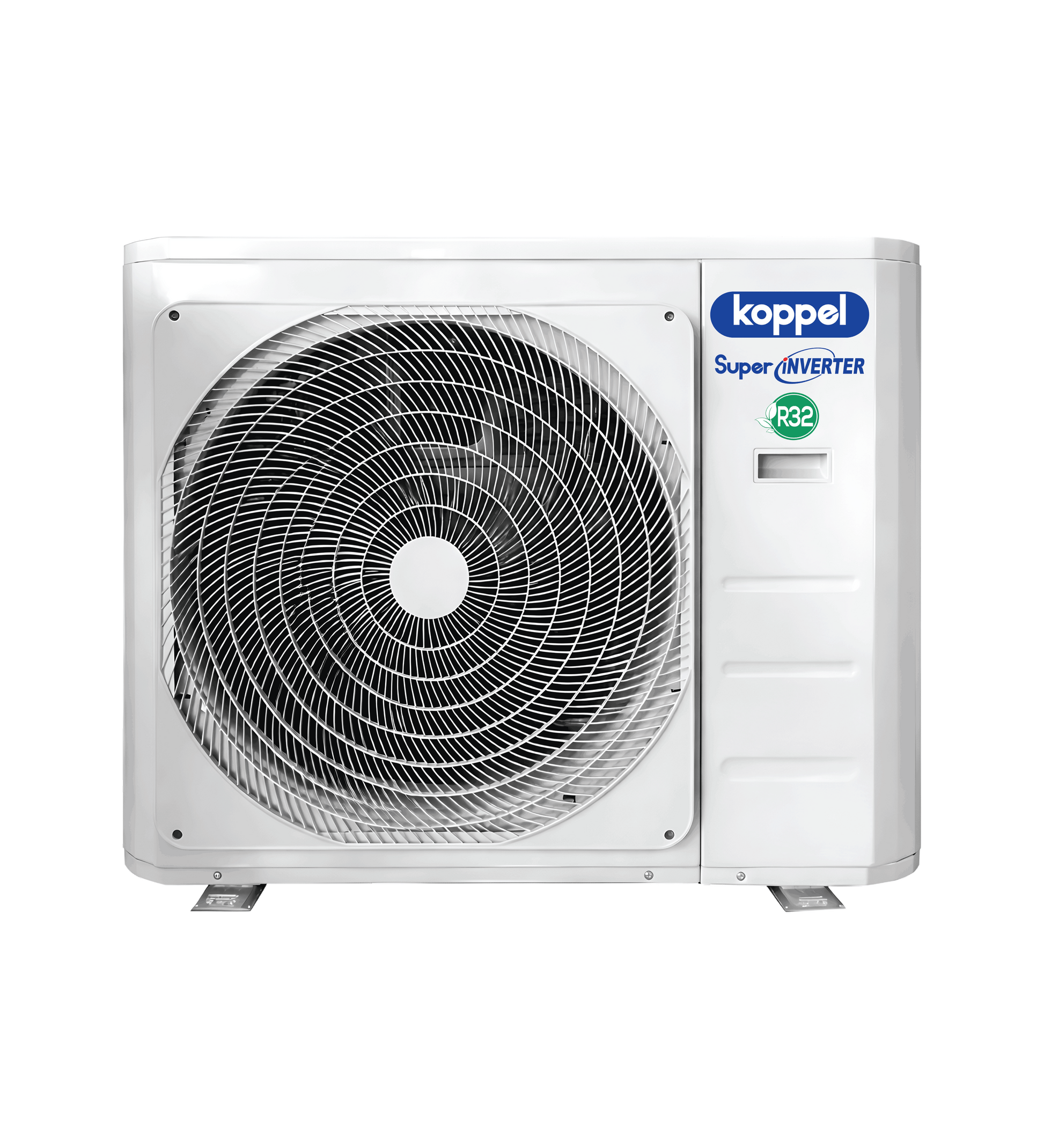

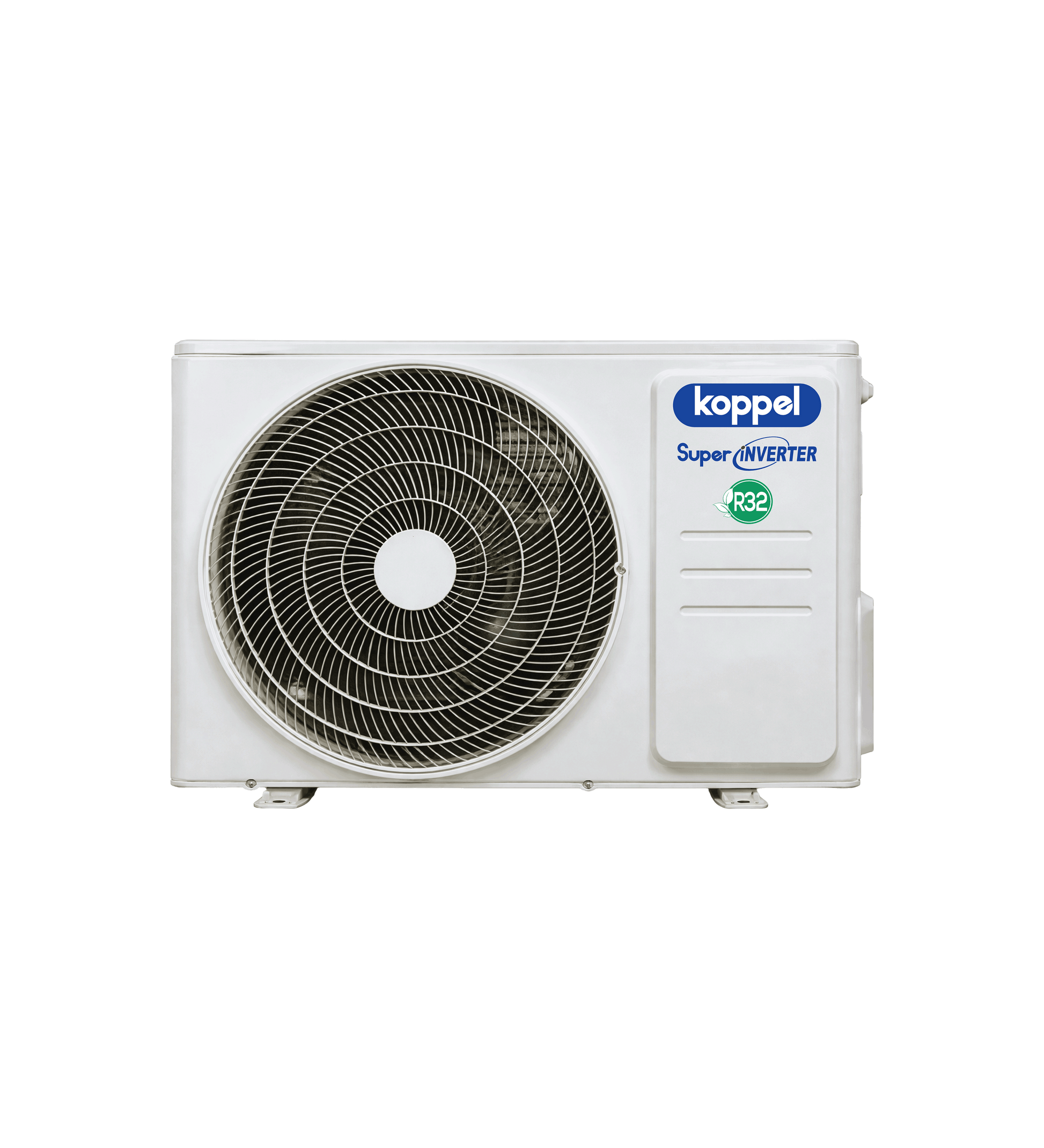

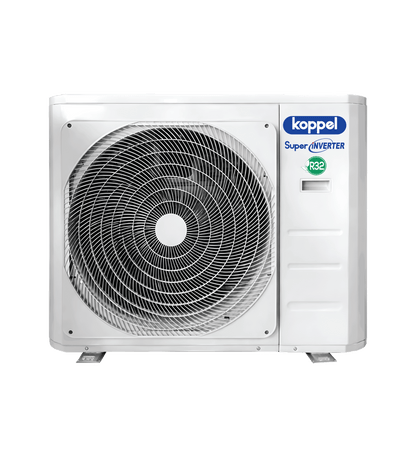

| Outdoor | ||||
| Unit Dimension (W×D×H) | mm | 890×342×673 | 946×410×810 | 946×410×810 |
| Packaging Dimension (W×D×H) | mm | 995×435×750 | 1,090×500×875 | 1,090×500×875 |
| Unit Weight (Net/Gross) | kg | 43.9/47.1 | 63.9/68.9 | 67.2/72.2 |
| Piping Connections | ||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) | Ø9.52 (Ø3/8) |
| Gas Pipe Size (Diameter) | mm (in) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) | Ø15.9 (Ø5/8) |
| Max. Refrigerant Pipe Length | m | 30 | 50 | 50 |
| Max. Difference in Level | m | 20 | 30 | 30 |
