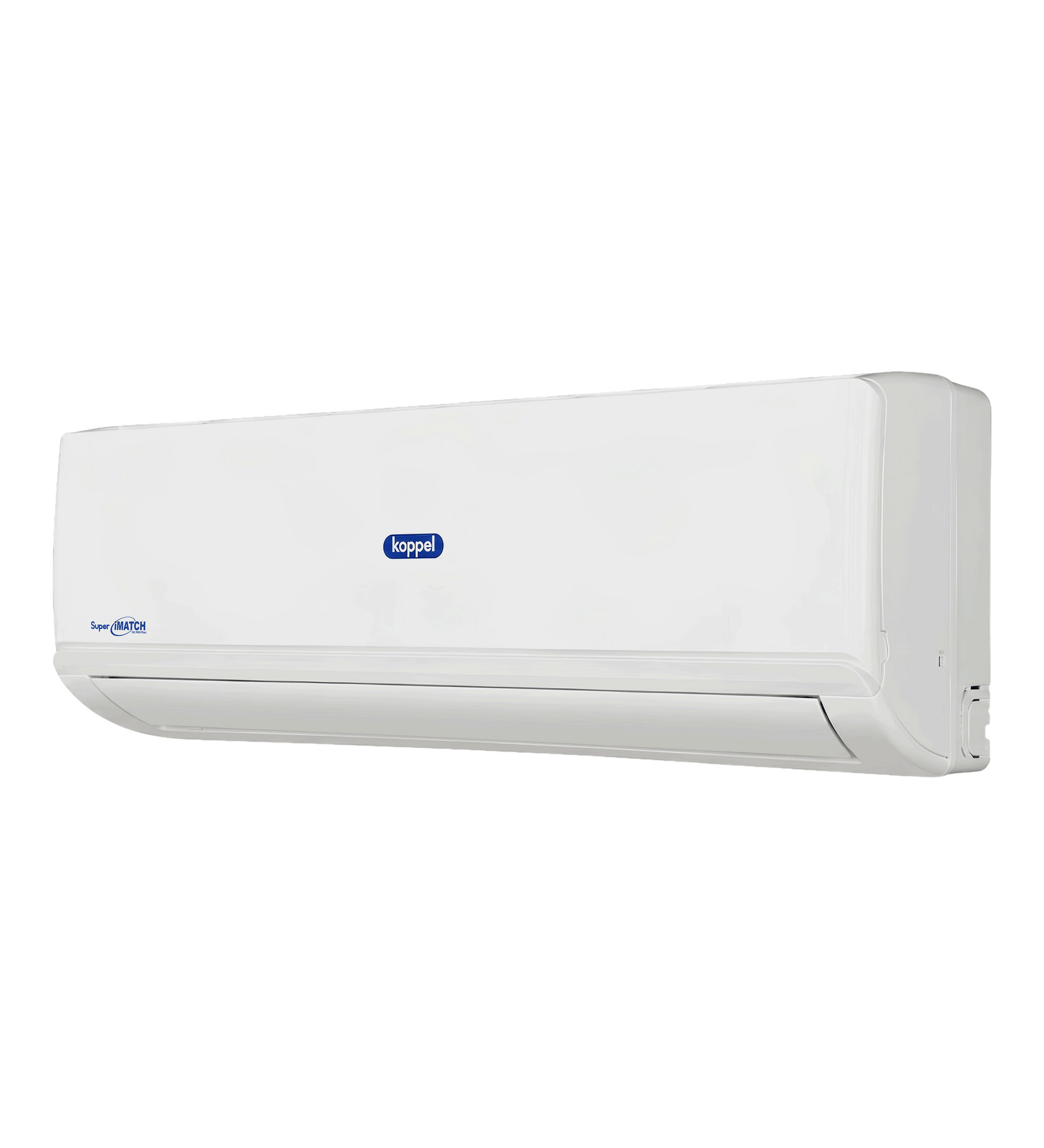

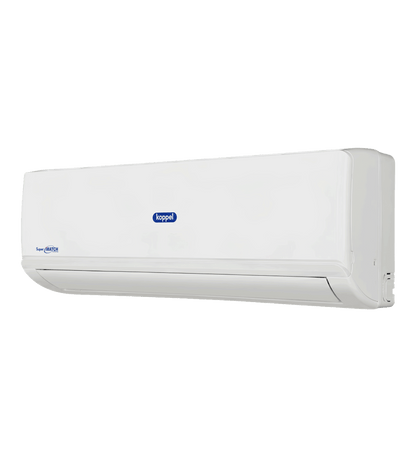

| Specification | Indoor Unit | KVMS09WM-ARF21C2 | KVMS12WM-ARF21C2 | KVMS18WM-ARF21C2 | KVMS24WM-ARF21C2 |
|---|---|---|---|---|---|
| Cooling Capacity | HP | 1.0 | 1.5 | 2.0 | 2.5 |
| BTU/Hr | 9,000 | 12,000 | 18,000 | 24,000 | |
| kJ/Hr | 9,495 | 12,660 | 18,990 | 25,320 | |
| Power Supply | V/Ph/Hz | 208-230 /60 |
208-230 /60 |
208-230 /60 |
208-230/60/1 |
| Operation Temperature (Min-Max) | °C | 17-32 | 17-32 | 17-32 | 17-32 |
| Applicable Area (Unloaded Space) | SQM | 12-18 | 16-23 | 23-34 | 30-44 |
| Airflow Volume Hi/Mi/Low | CMH | 495/330/260 | 495/330/260 | 902/780/650 | 1,022/780/650 |
| Noise Level Low | dB(A) | 24.5 | 25.0 | 34.5 | 35.5 |
| Indoor Unit | |||||
| Unit Dimension (W×D×H) | mm | 802×200×295 | 802×200×295 | 1,083×244×336 | 1,082×234×337 |
| Packaging Dimension (W×D×H) | mm | 875×285×380 | 875×285×380 | 1,155×415×315 | 1,155×415×315 |
| Unit Weight (Net/Gross) | kg | 8.6/11 | 8.6/11 | 13.4/17 | 13.6/17.3 |

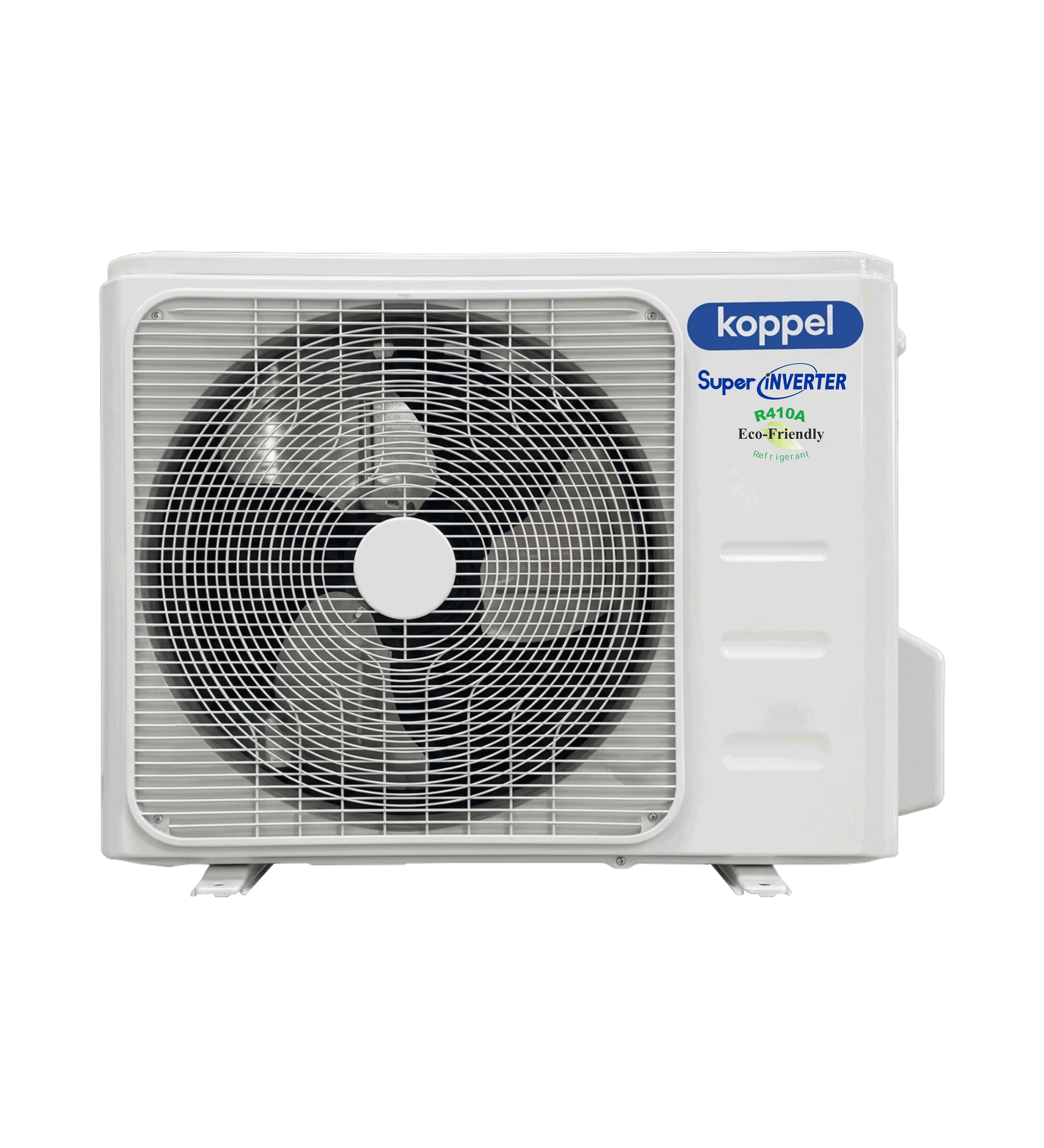

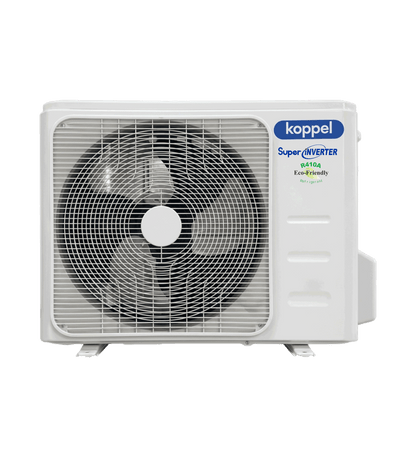

| Specification | Outdoor Unit | KVMS30OD3-ARF21C2 | KVMS36OD4-ARF21C2 | KVMS48OD5-ARF21C2 |
|---|---|---|---|---|
| Cooling Capacity | HP | 3.3 | 4.0 | 5.3 |
| BTU/Hr | 30,000 | 36,000 | 48,000 | |
| kJ/Hr | 31,650 | 37,980 | 50,640 | |
| Number of Indoor Combinations | 3 | 4 | 5 | |
| Power Supply | V/Ph/Hz | 208-230 /60 |
208-230 /60 |
208-230 /60 |
| Ambient Temperature | °C | -25 +50 |
-25 +50 |
-15 +50 |
| Airflow Volume Hi | CMH | 3,620 | 3,650 | 7,650 |
| Noise Level Low | dB(A) | 60.0 | 63.5 | 62 |
| Refrigerant | R410A | R410A | R410A | |
| Outdoor Unit | ||||
| Unit Dimension (W×D×H) | mm | 946×410×810 | 946×410×810 | 952×415×1,333 |
| Packaging Dimension (W×D×H) | mm | 1,090×500×875 | 1,090×500×875 | 1,095×495×1,460 |
| Unit Weight (Net/Gross) | kg | 63.4/68.3 | 76.7/82.3 | 102.3/118.4 |
| Piping Connections | ||||
| Liquid Pipe Size (Diameter) | mm (in) | 3× Ø6.35 (3×Ø1/4) | 4× Ø6.35 (4×Ø1/4) | 5× Ø6.35 (5×Ø1/4) |
| Gas Pipe Size (Diameter) | mm (in) | Ø9.53 (Ø3/8) | 3× Ø9.52+Ø12.7 (3×Ø3/8+Ø1/2) | 3×Ø9.52+2×Ø12.7 (3×Ø3/8+2×Ø1/2) |
| Max. Refrigerant Pipe Length (combined/one) | m | 60/30 | 80/35 | 80/35 |
